Unmissable machine sales following new investments at Brembate di Sopra (24030) and Rupperswil (5102)!

Starts: 20 June 2025 at 14:30 BST
Ends: 05 August 2025 at 14:00 BST
Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing. MULTILOCATION AUCTION: Please refer to the lot description.
Register for auctionEssential Information
Share:
Showing 7 of 7 lots
  • 01
    1
    LOT 1

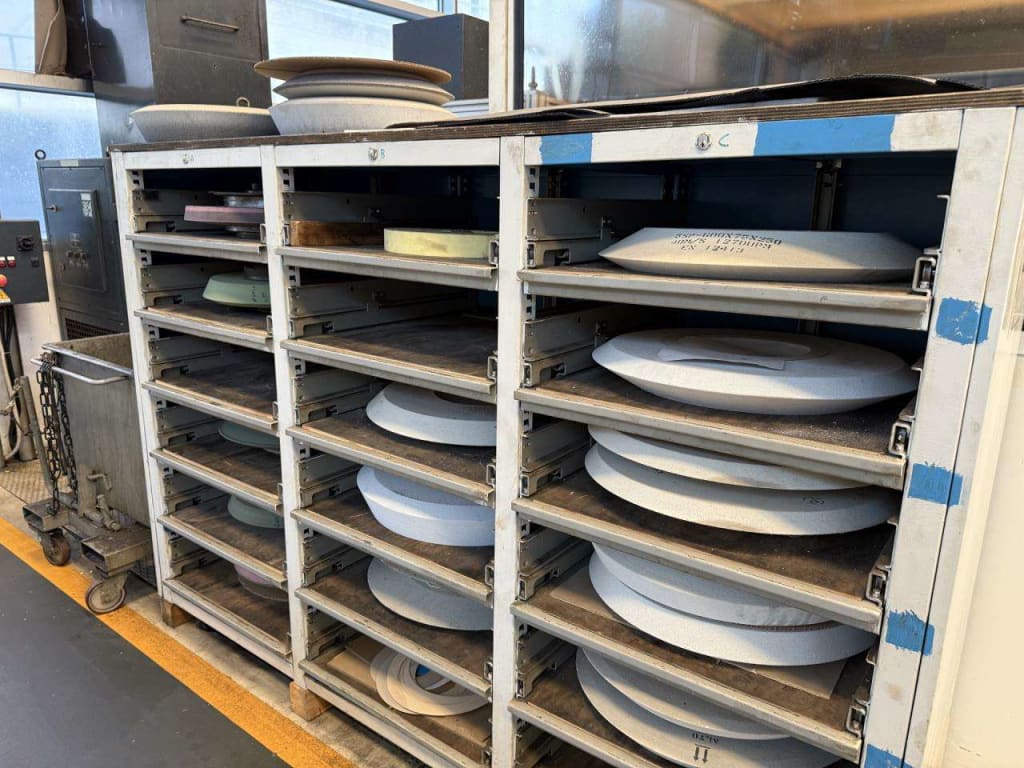

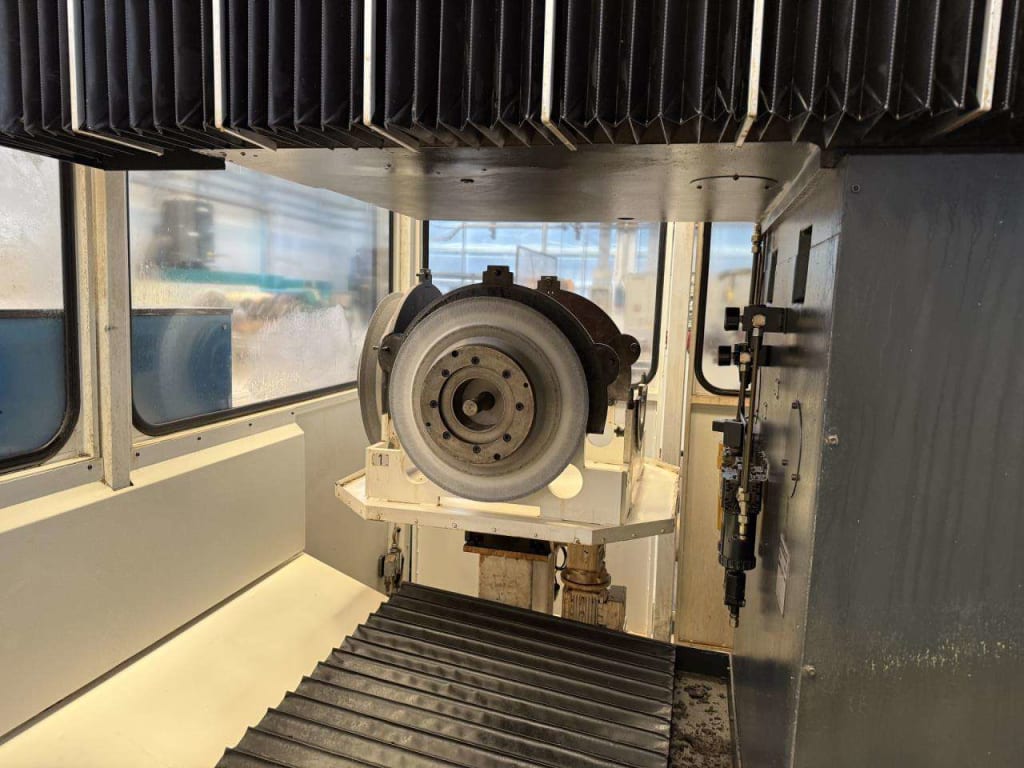

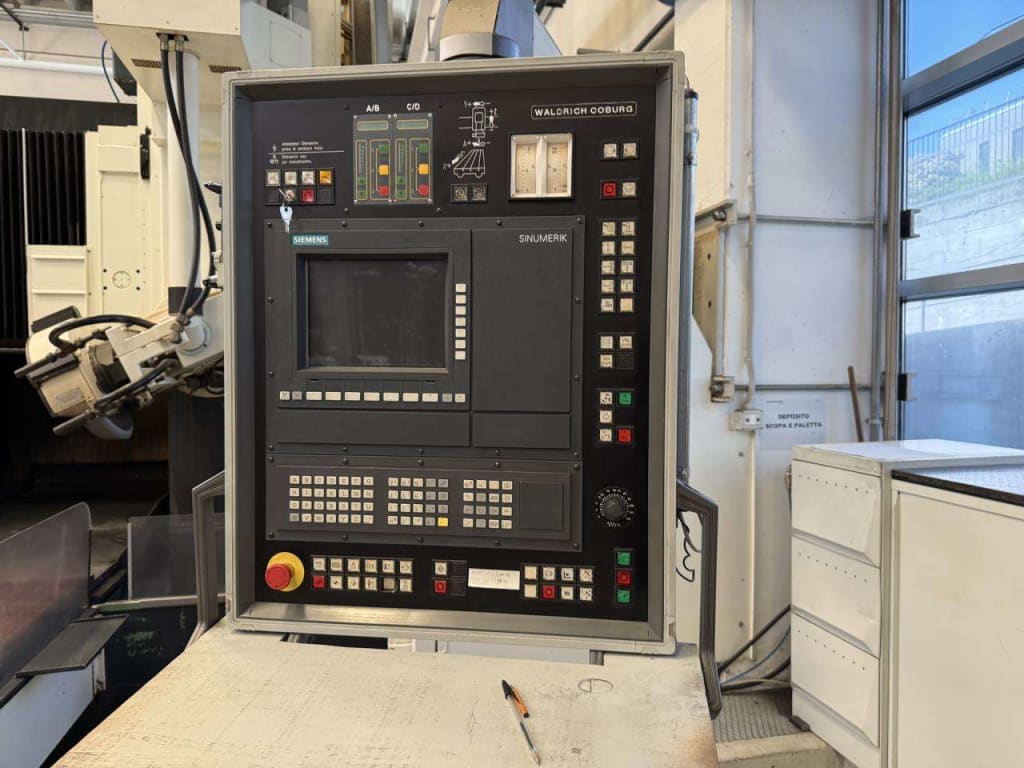

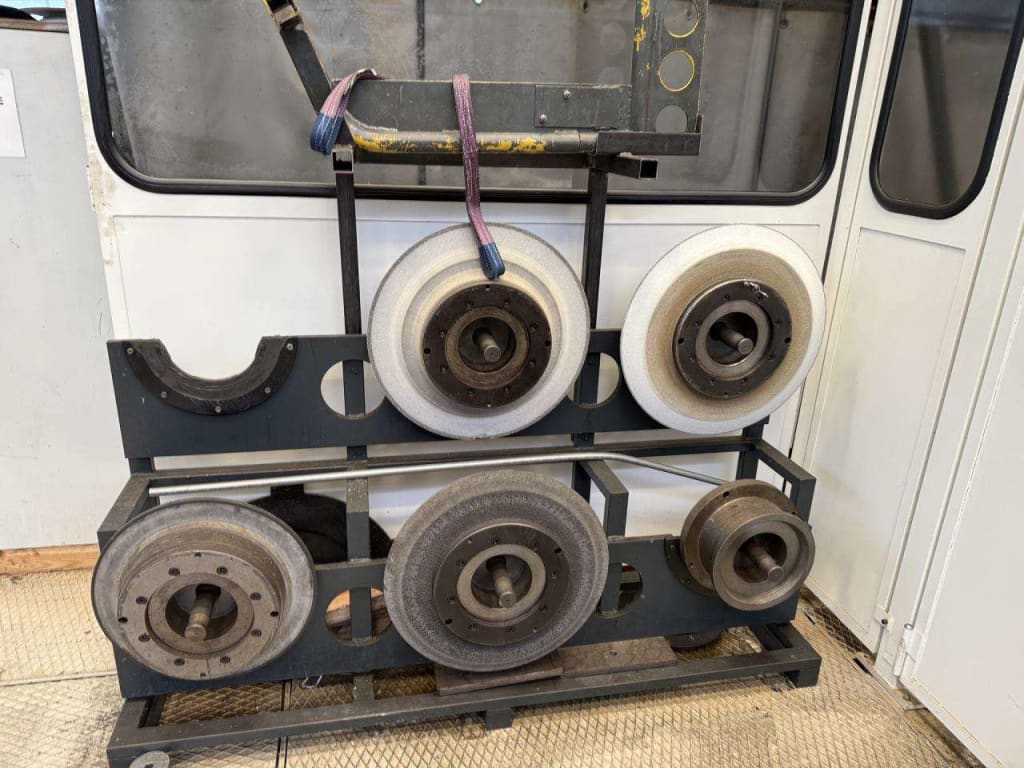

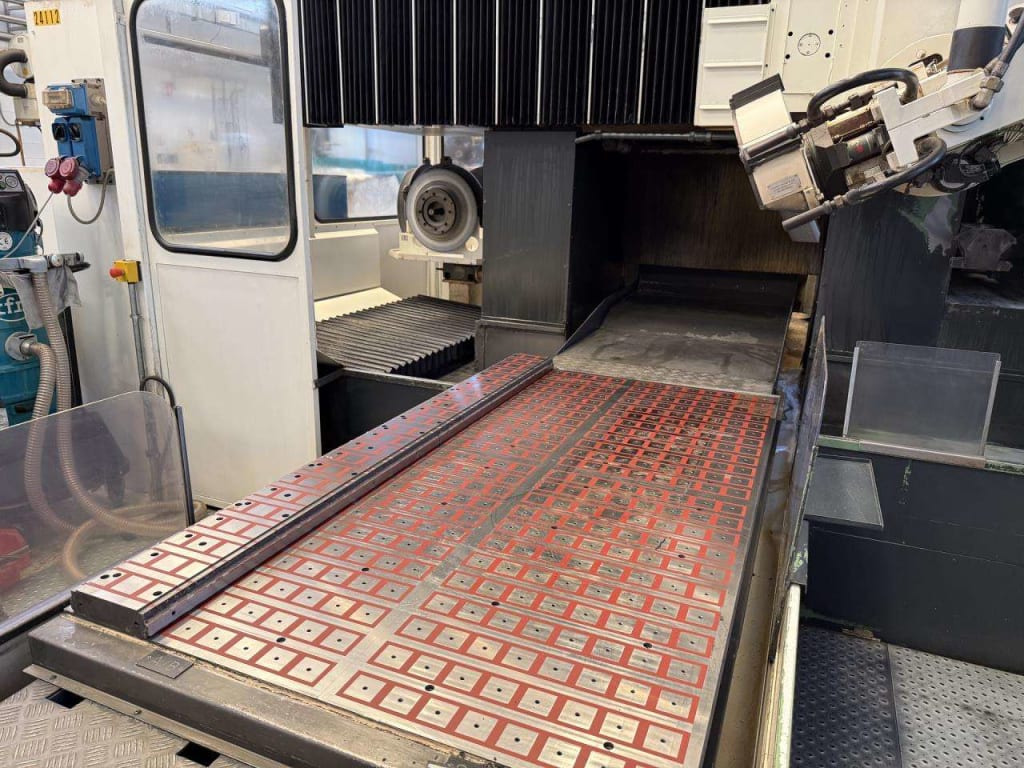

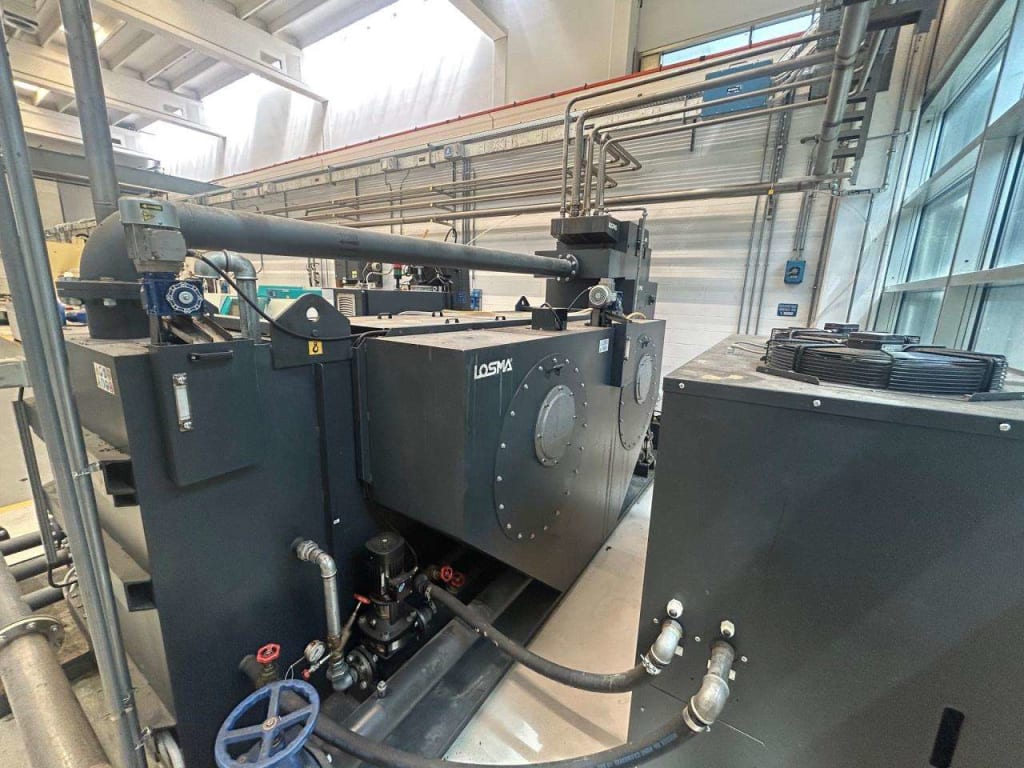

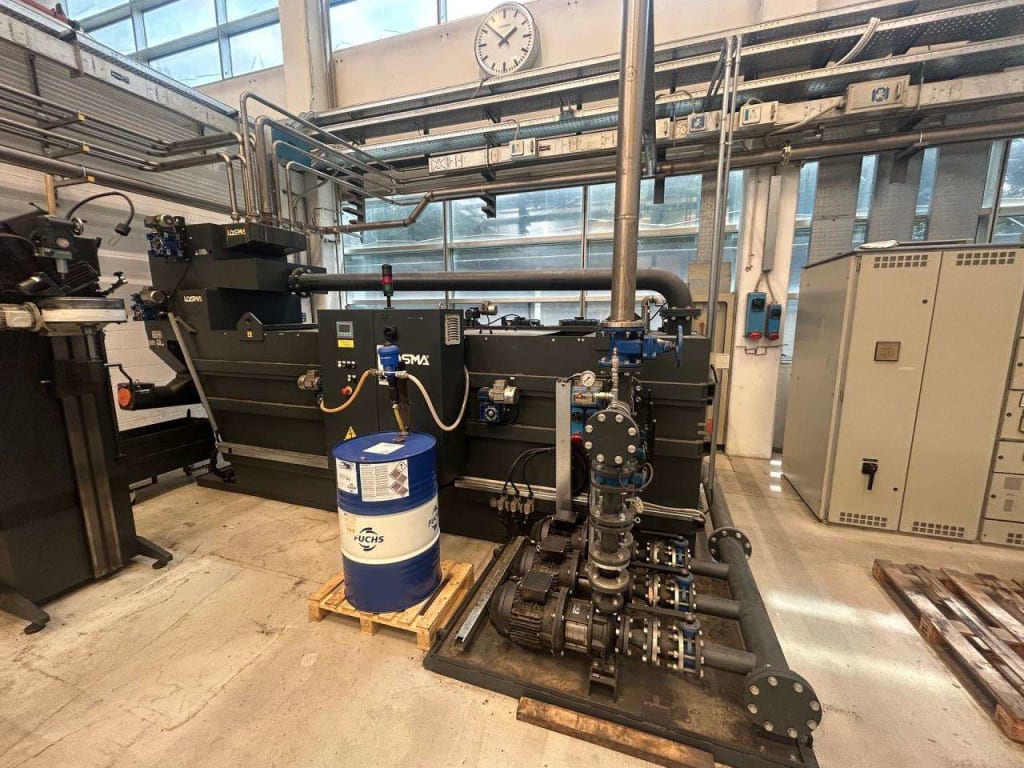

    WALDRICH COBURG 0-15 SNC-Q grinding machine

    Table length 2000mm - Table width 1100mm - Max. table load 6000Kg - Grinding wheel Ø 630mm - Grinding wheel width 150mm - Fixed grinding wheel speed 930RPM - Universal grinding head U15 - internal ref. 23176 - year 2017 - approx. weight: 20000kg - origin Germany. 20000kg - origin Germany. Serial 3.4219, Year 1997. Site: 24030 Brembate di Sopra, Italy.

    View Item
  • 20741_1_itxqo2
    20741_2_qx7exv
    20741_3_xbzsuz
    20741_4_acls3f
    20741_5_zlsg5d
    20741_6_aqnmnj
    20741_7_ingvgl
    20741_8_svxoei
    20741_9_r5zmyp

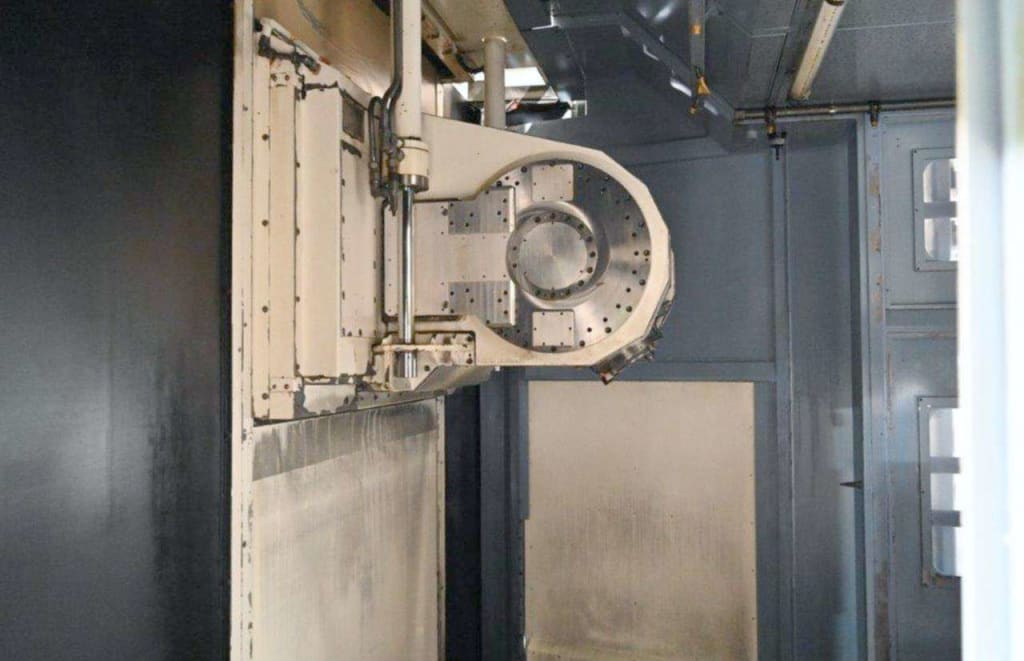

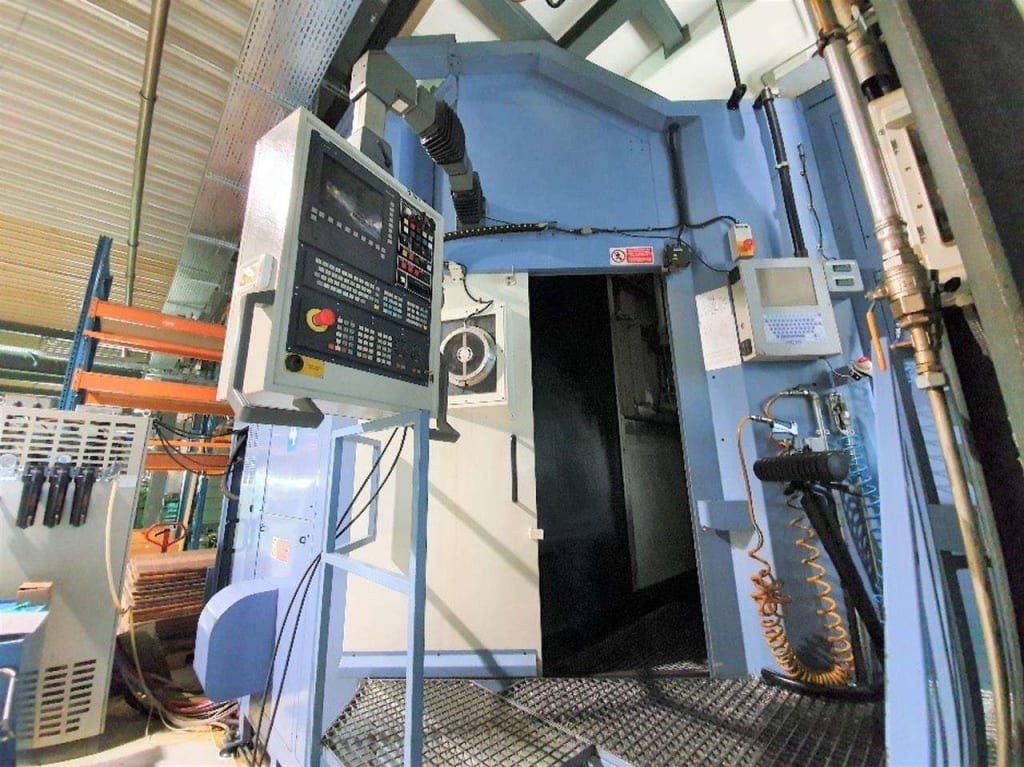

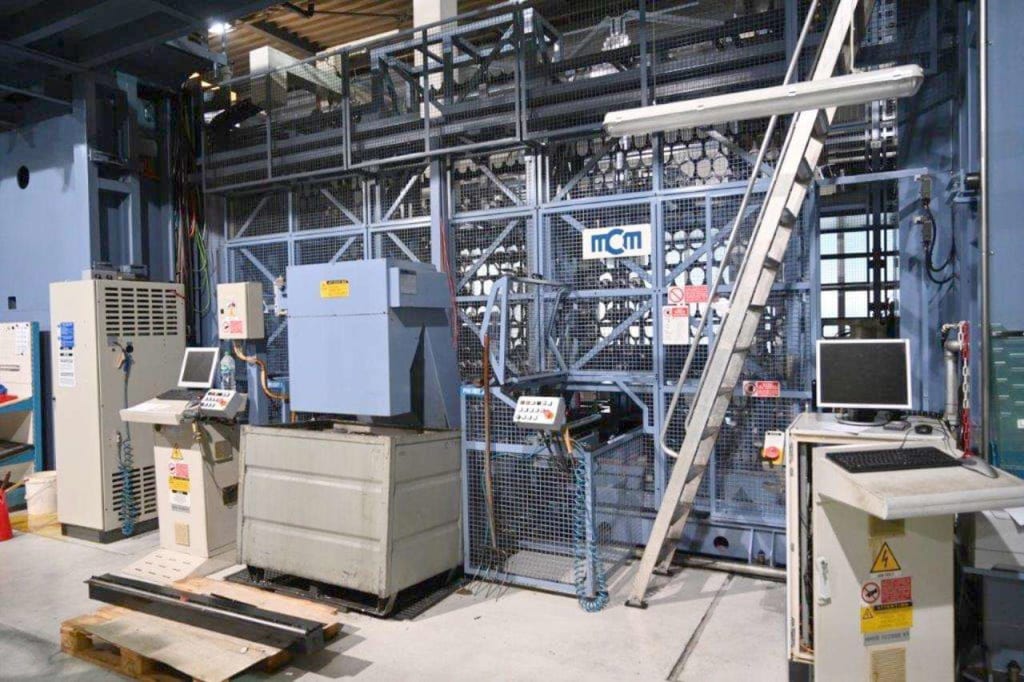

    LOT 2

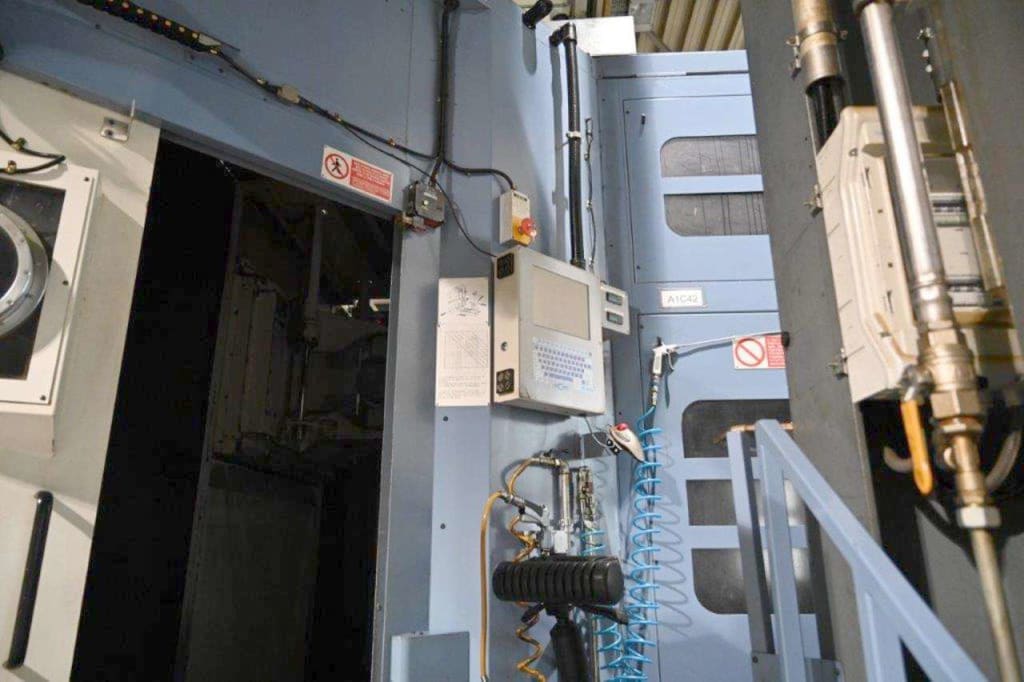

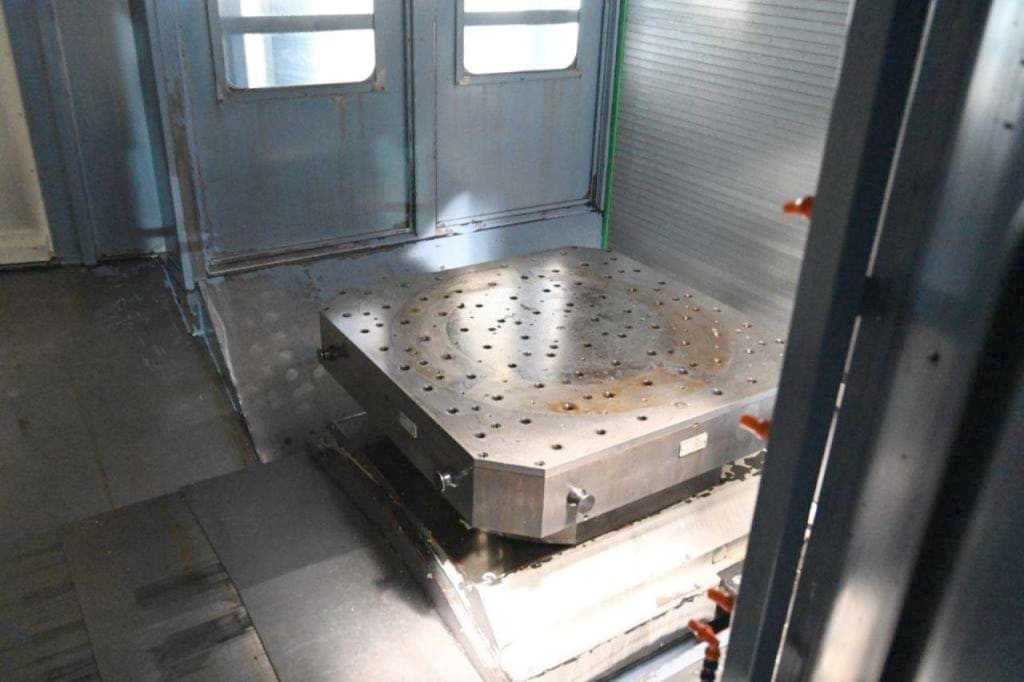

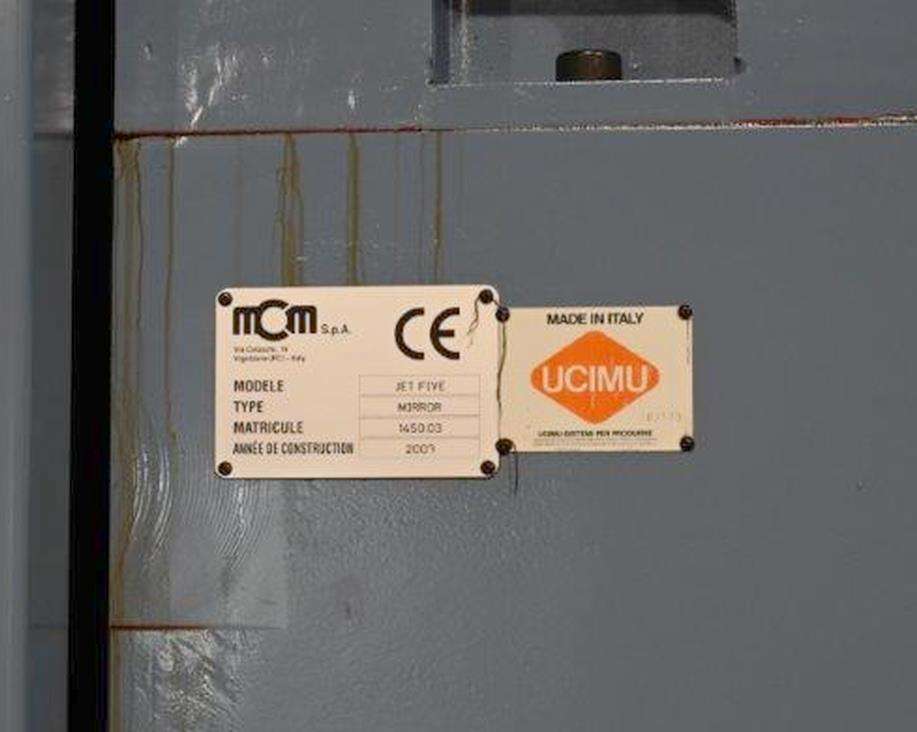

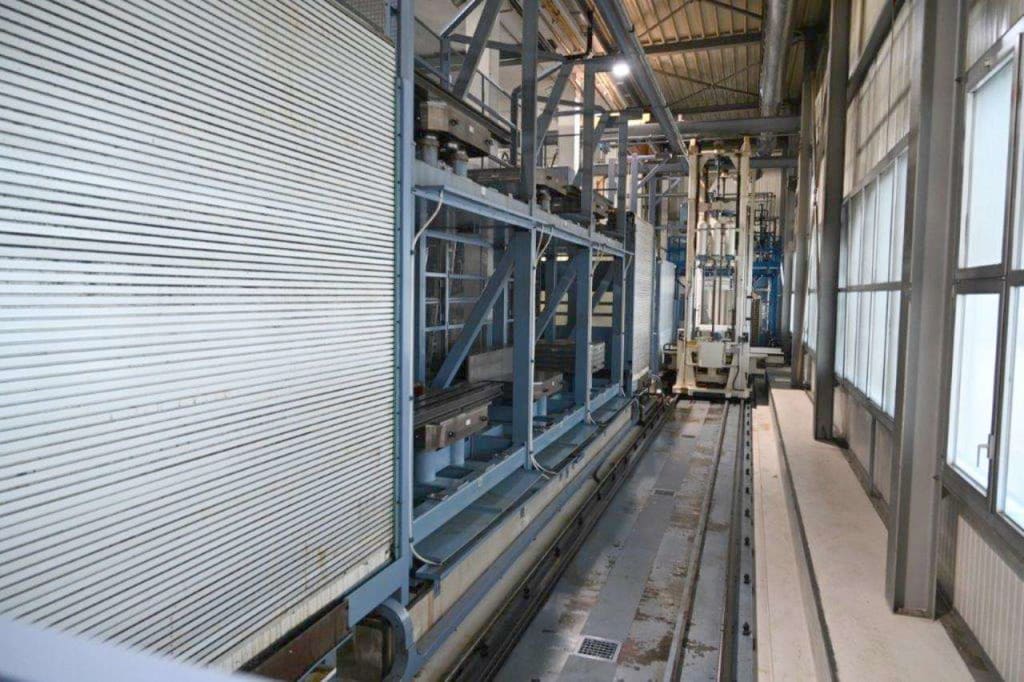

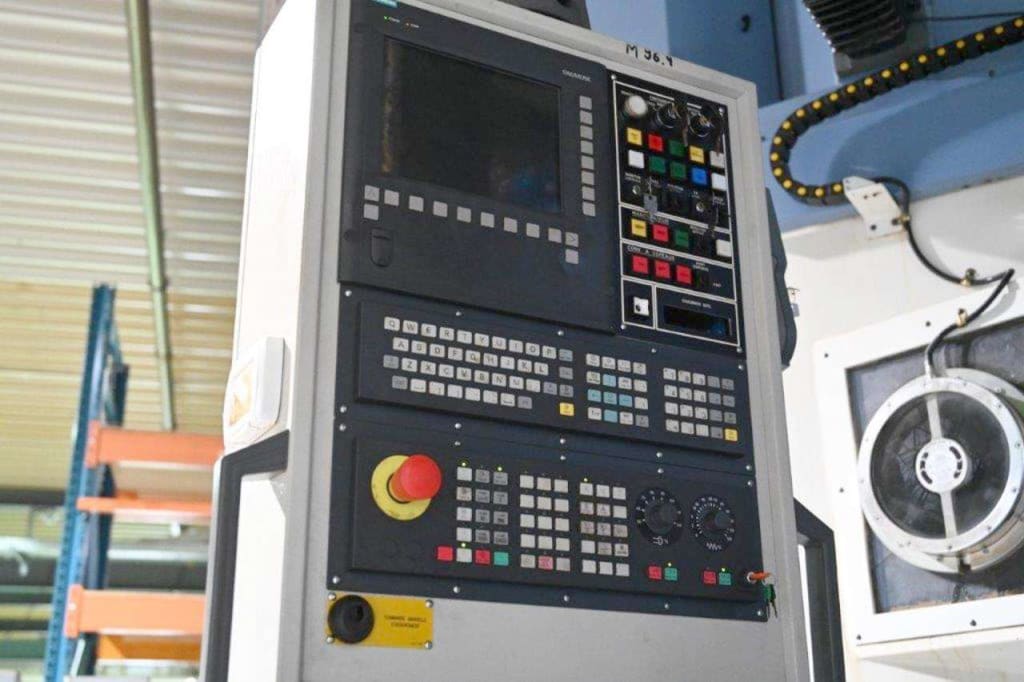

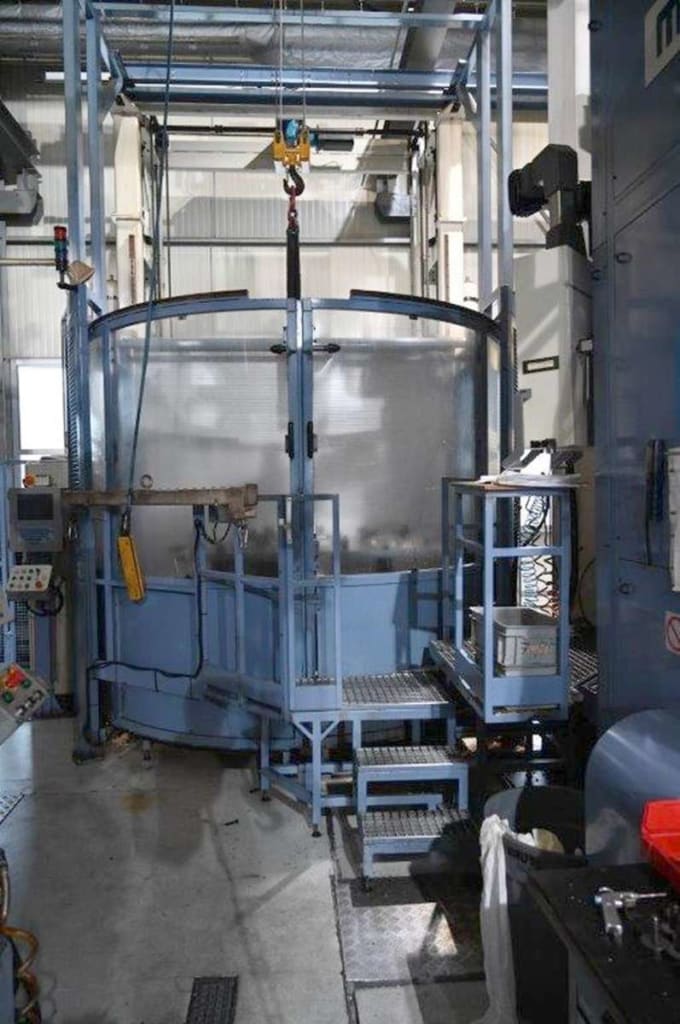

    2 MCM JET FIVE MIRROR 5-axis machining centres with robot loader

    CNC SIEMENS SINUMERIK 840 D - 2003 - Number of machines 2 - Total number of axes 5 - Longitudinal travel (X-axis) 3000mm - Cross travel (Y) 2000mm - Vertical travel (Z-axis) 2000mm - Vertical travel (Y-axis) 1720mm - Table top divisions (B) 0. 001° - Pivoting angle (a-axis) 175° - Pallets: Number 8 - Length 1250mm - Width 1250mm - Allowable weight 3000Kg - Tool changer: Magazine number of tool places 640 - Spindle taper: HSK-A 100 - Spindle speed: - Variable speed drive (infinitely variable) at 3000RPM - Feeds: X-axis 40 m/min - Y-axis 40 m/min - Z-axis 30 m/min - Spindle motor 50 kW Miscellaneous accessories: FMS system (Flexible Manufacturing System), Coolant device, chip evacuator - origin Italy - weight approx. 6000Kg - internal ref. 20741. Site: 24030 Brembate di Sopra, Italy.
    View Item
  • 1
    LOT 3

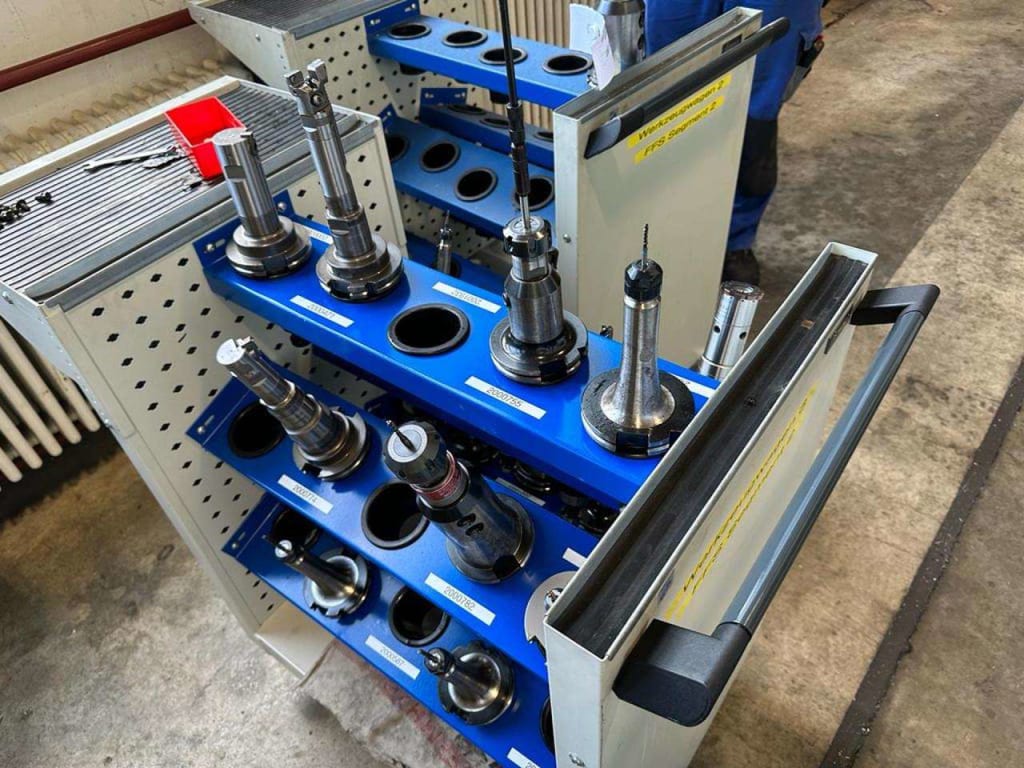

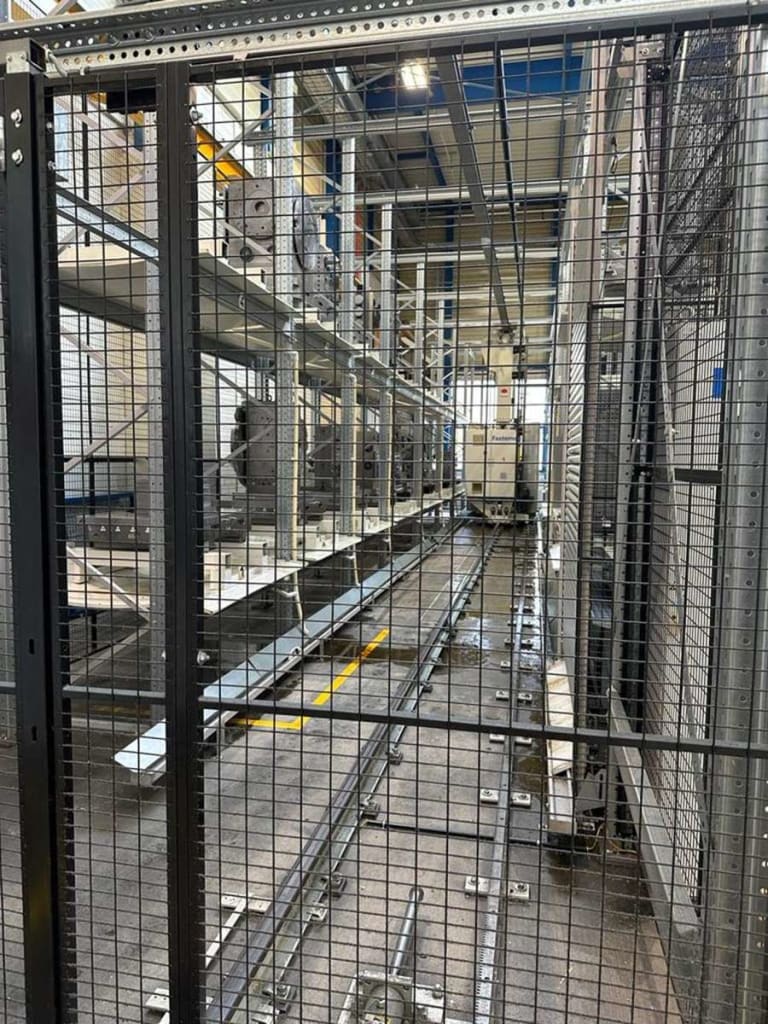

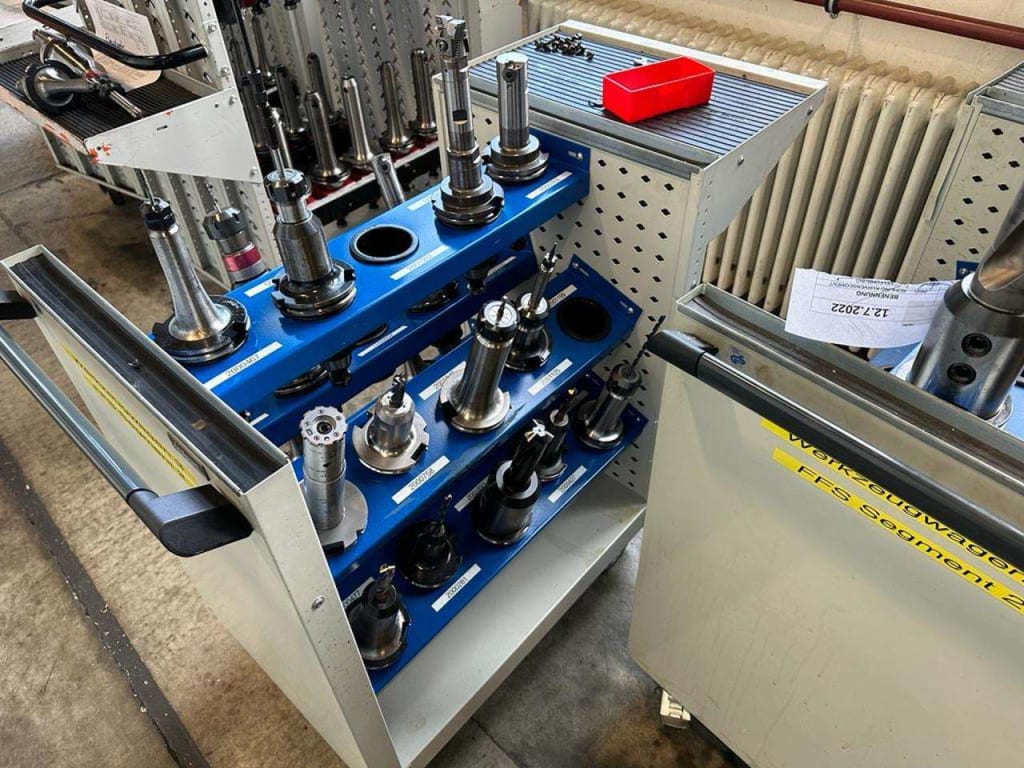

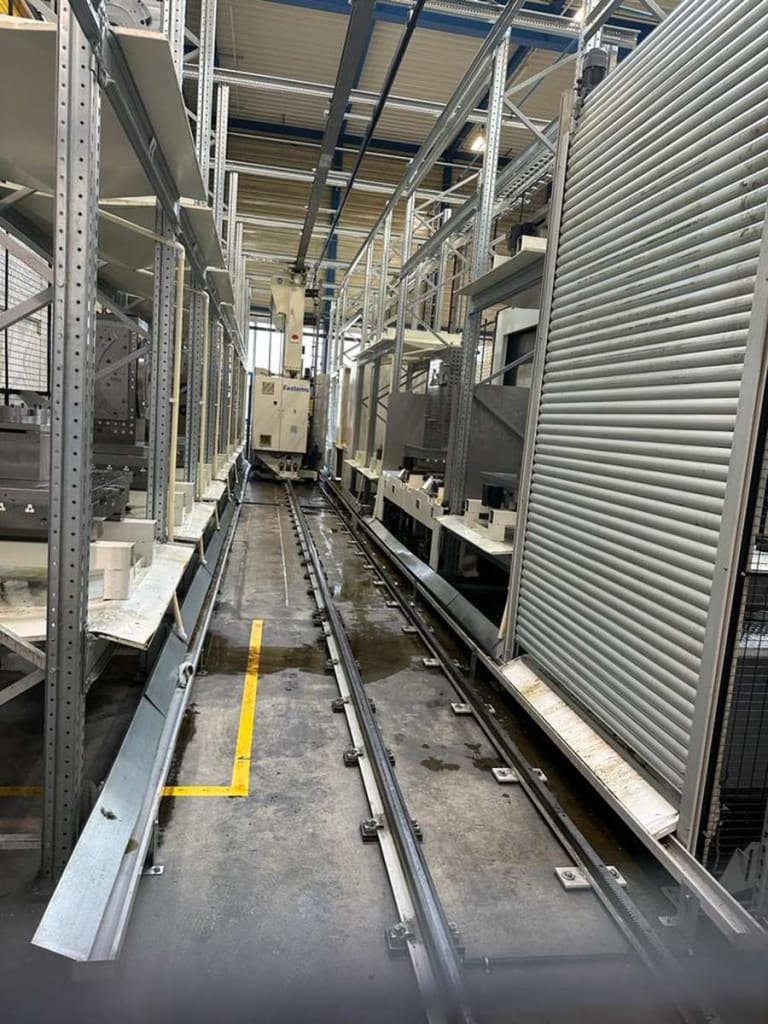

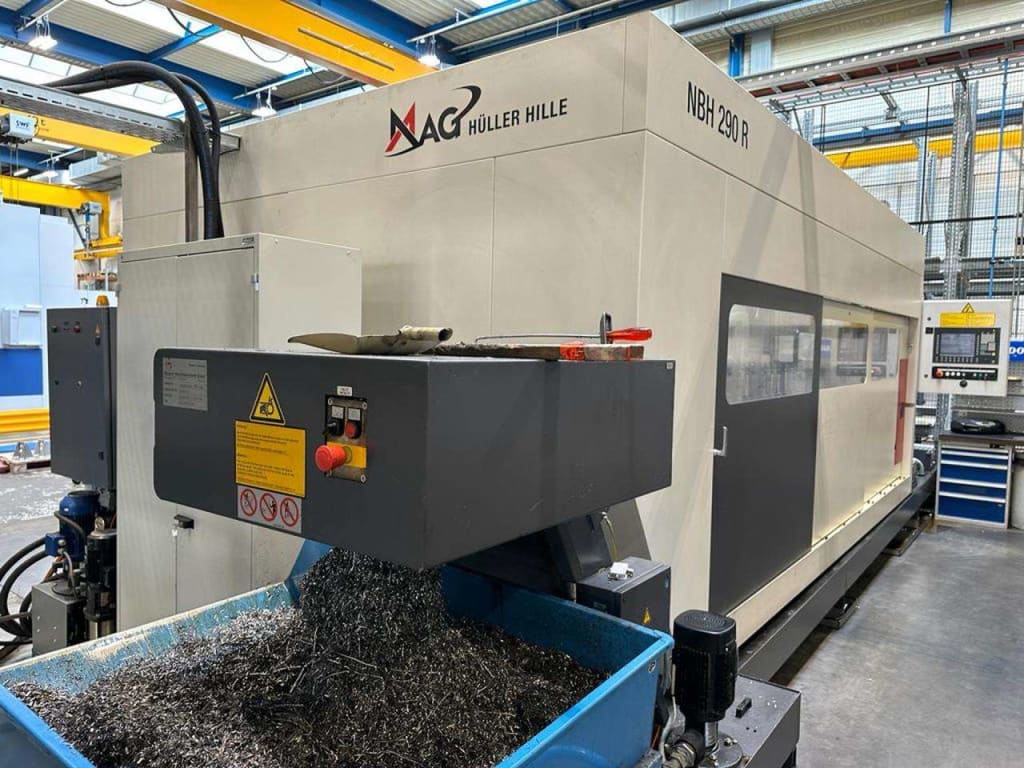

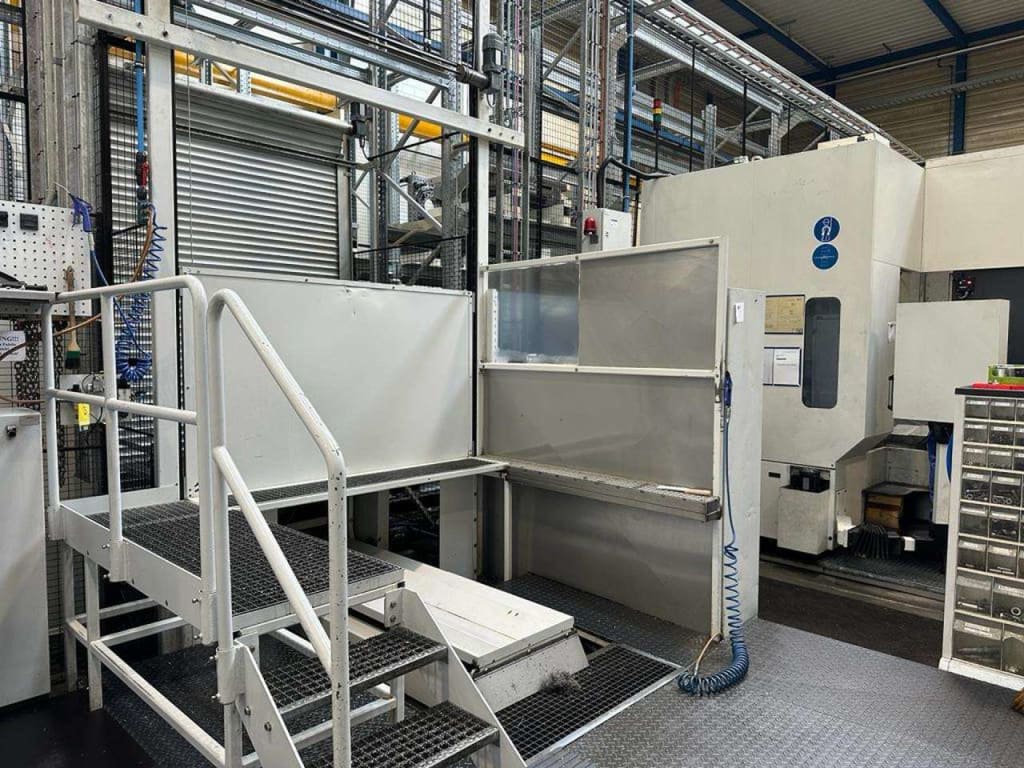

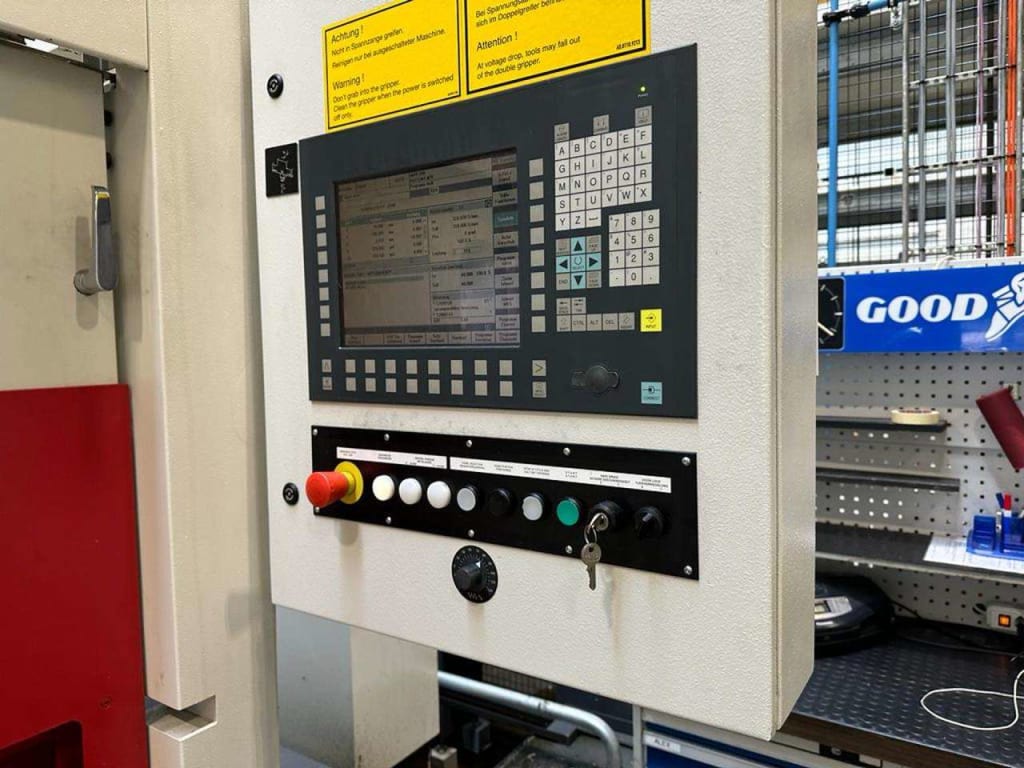

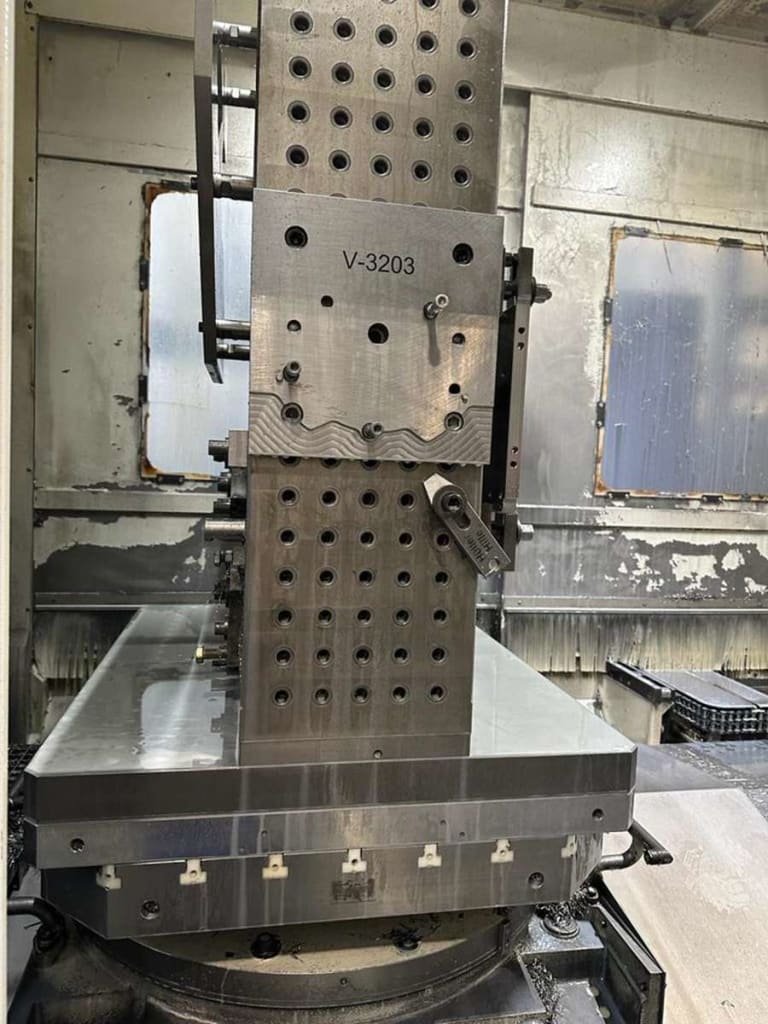

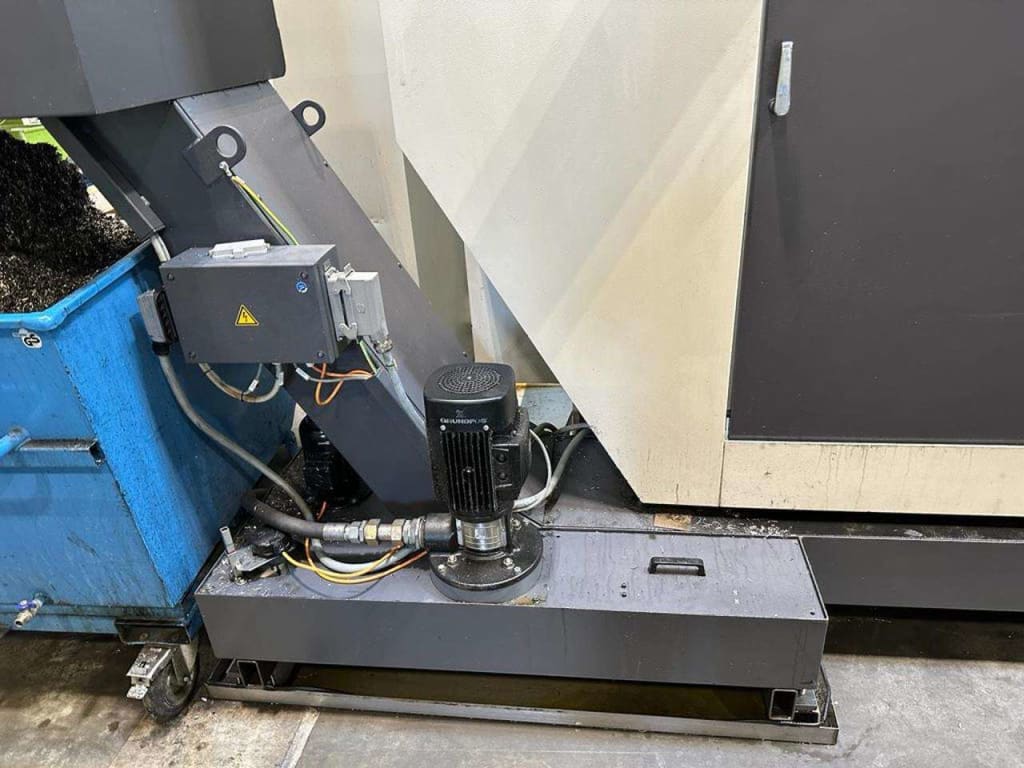

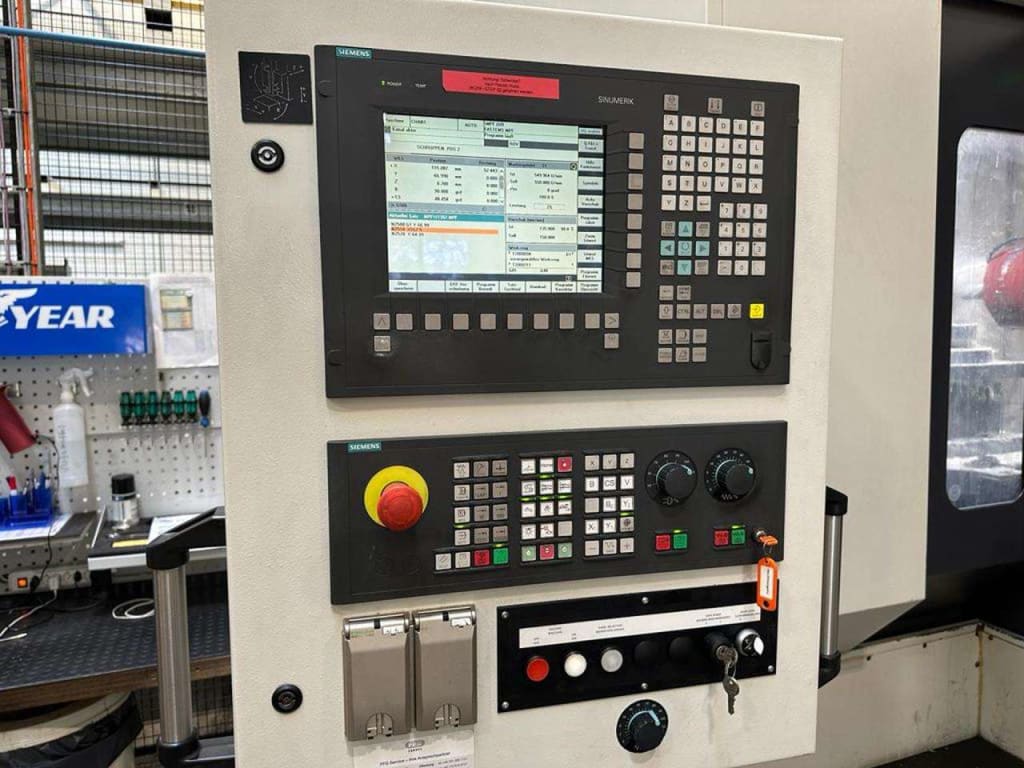

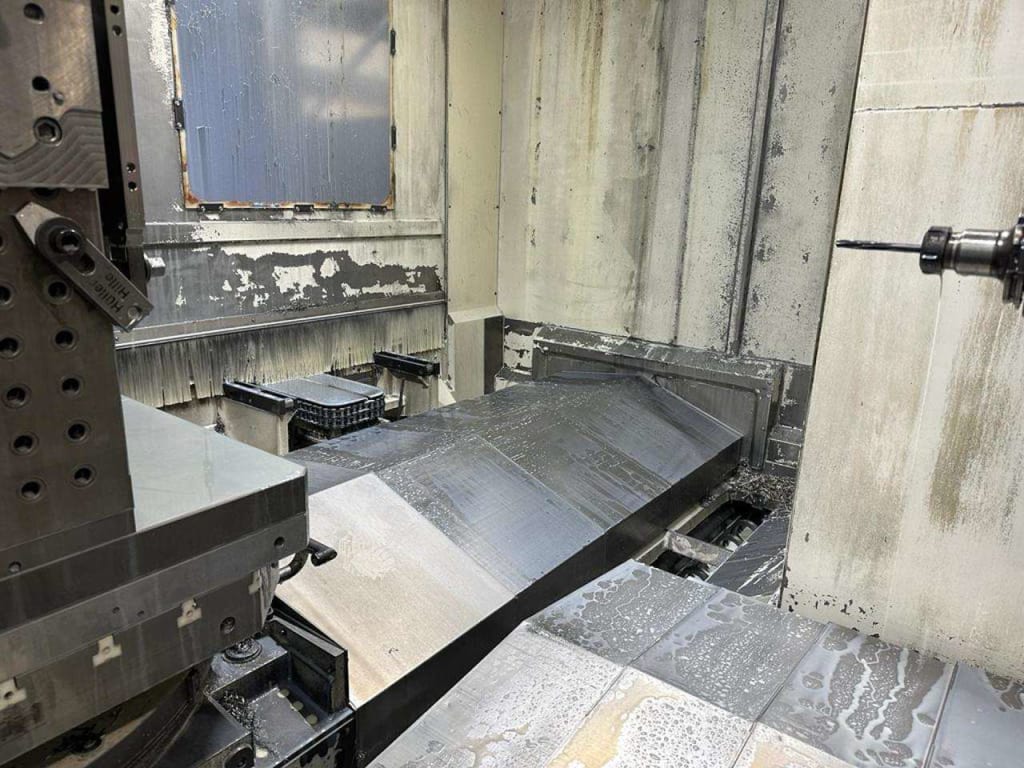

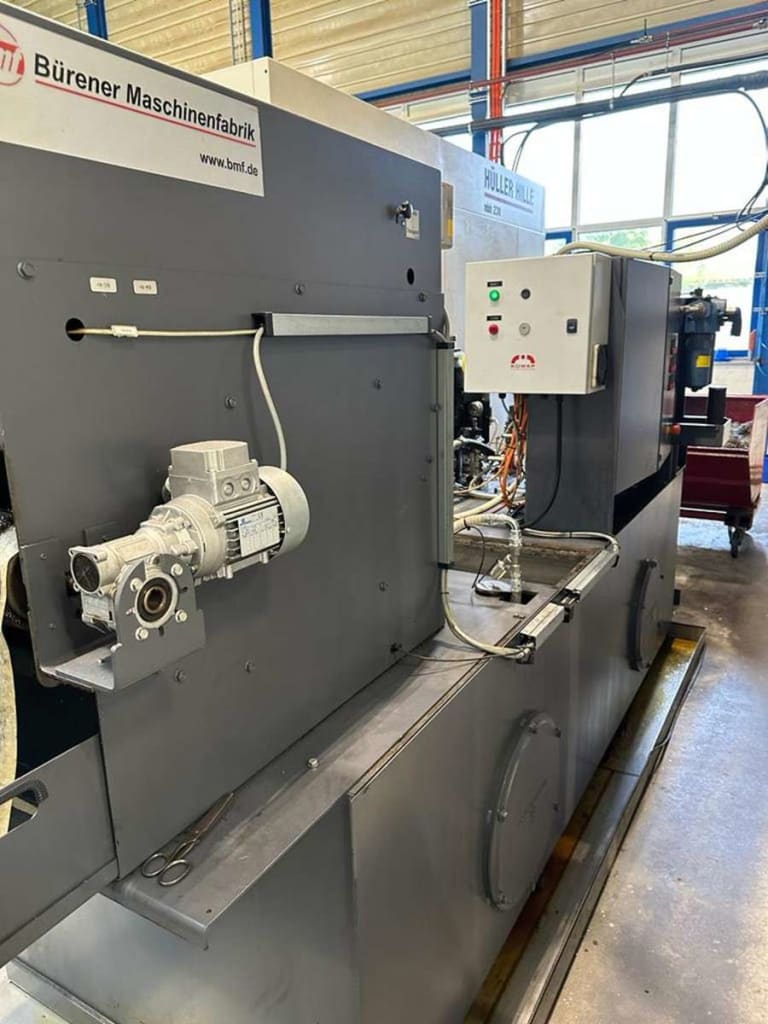

    2 HÜLLER HILLE NBH 230 / NBH 290 R horizontal machining centres

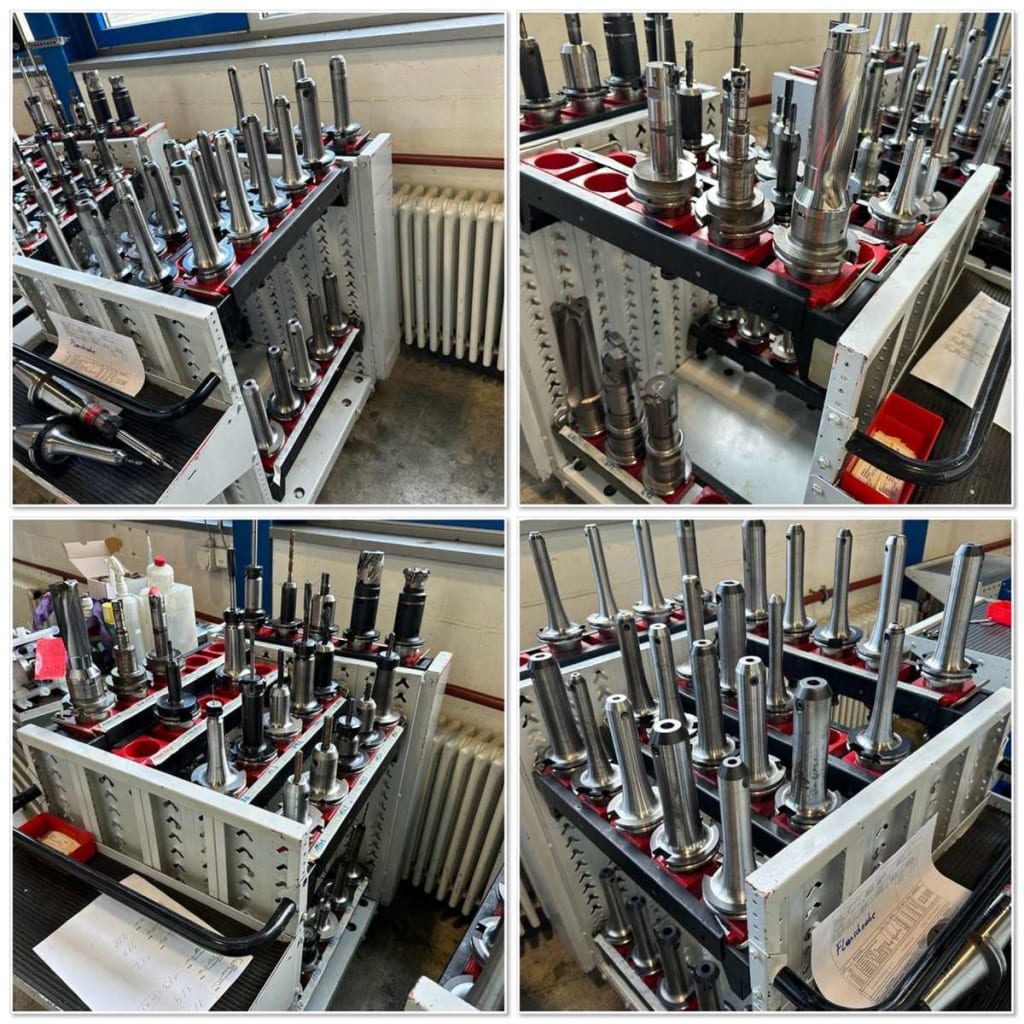

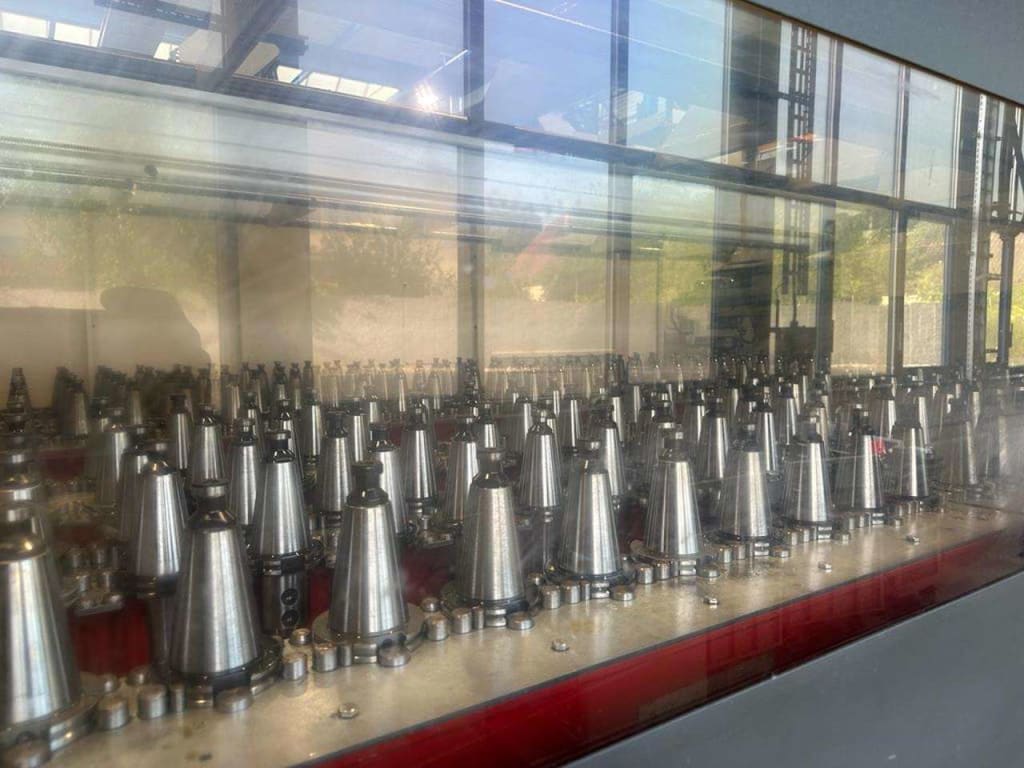

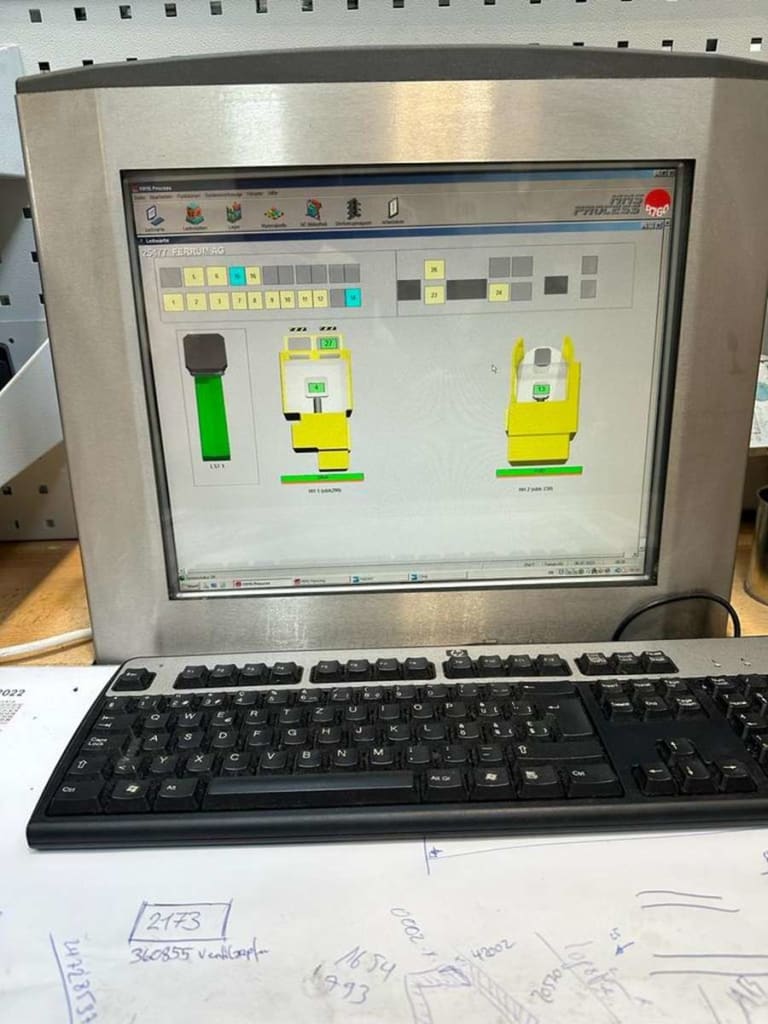

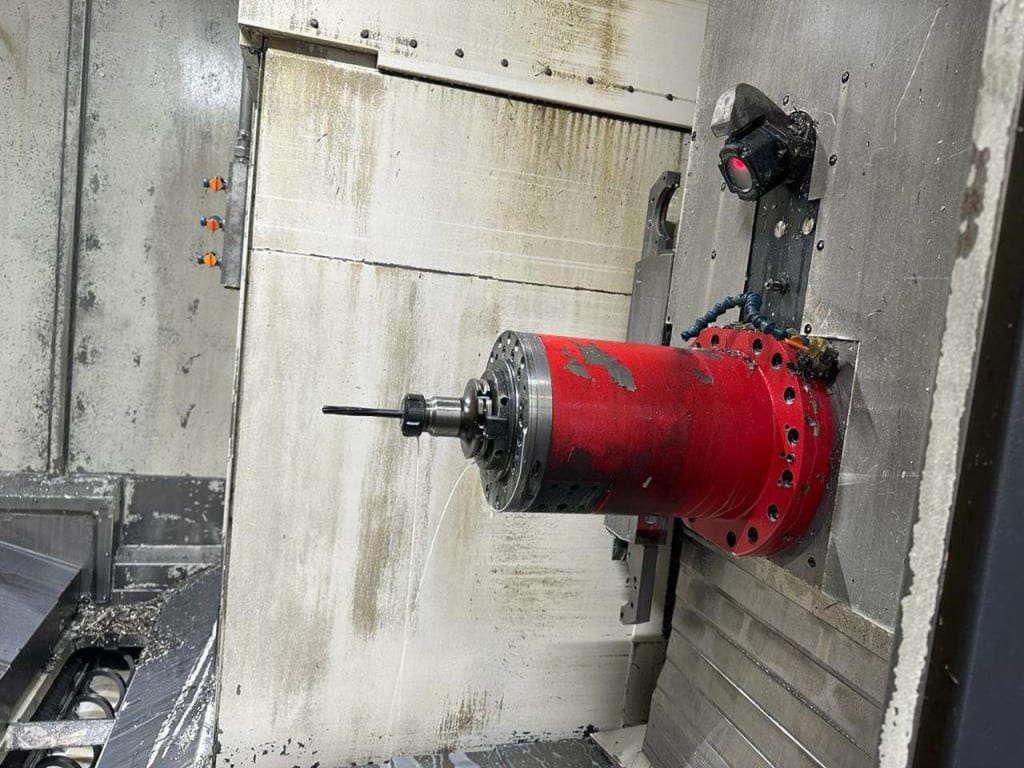

    Number of machines 2 - Max. table load 1200 / 2500Kg - Longitudinal travel (X-axis) 1200 / 1460mm - Cross travel (Y-axis) 800 / 1000mm - Vertical travel (Z-axis) 1200 / 1200mm - B-axis 9999° Table revolutions 15RPM - Table holding torque 10000 Nm - Tilting torque 29000 Nm - Pallets: Number 10 / 10 - Length 630 / 1000mm - Width 630 / 800mm - Maximum workpiece weight 2500Kg - Tool changer: Number of positions 300 - Max. tool Ø. 125mm - Max. Ø with free places 250mm - Max. tool length 650mm - Max. tool weight 40Kg - Tool change time 2.5 - 4. 5 seconds - Average chip change time 7 - 9 seconds - Spindle taper: SK 50 DIN69871 - Distance between spindle nose and table 130mm - Spindle speed: Variable (infinitely variable) from 25RPM to 6000RPM - Maximum torque 900 / 1130 Nm - Feed speed 1 - 36000mm/min - Rapid feed: 36 m/min - Power supply 50 Hz 3x 400 Volt - Machine weight approx. 30000Kg - Space requirement approx. 25 X 12 m2 - Miscellaneous accessories: FMS (Flexible Manufacturing System), LPP (pallet change system), EROWA zero-point clamping system ,Coolant system 1250 l , Paper filtration, Tool breakage monitoring, Tool holder set ca. 700x, Oil mist extraction - origin Germany - internal ref 22513. Serial NBH230 A1003050.01 / NBH290 A1003118.01, Year 2009. Site: 5102 Rupperswil, Switzerland.

    View Item
  • 1.jpg
    LOT 4

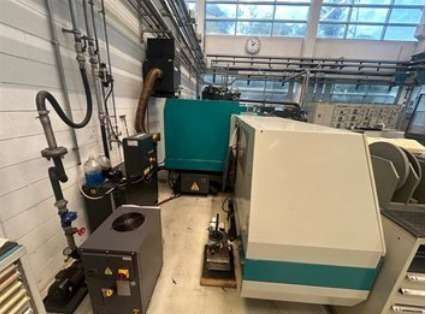

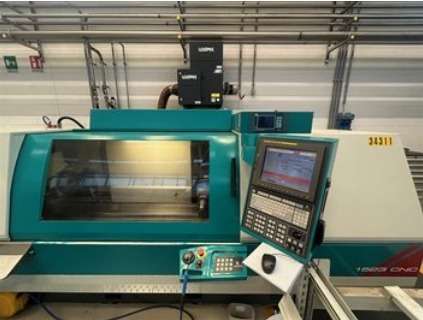

    TACHELLA ELEKTRA EVO CNC PLUS cylindrical grinding machine

    Height of spindles 180mm - Distance between spindles 1000mm - Max. grinding Ø 350mm - Max. load between spindles 120Kg - Grinding wheel: Ø 508mm - width 80mm - bore 203mm - max. width. 100mm - Tilting wheelhead (b-axis) -15/+195°: wheel speed 50m/s - spindle motor 8.2 kW - Approx. machine weight 6500Kg - miscellaneous accessories: coolant system/3-chuck chuck/oil mist extractor - internal ref. 23245 - origin Italy. Site: 24030 Brembate di Sopra, Italy.
    View Item
  • 1

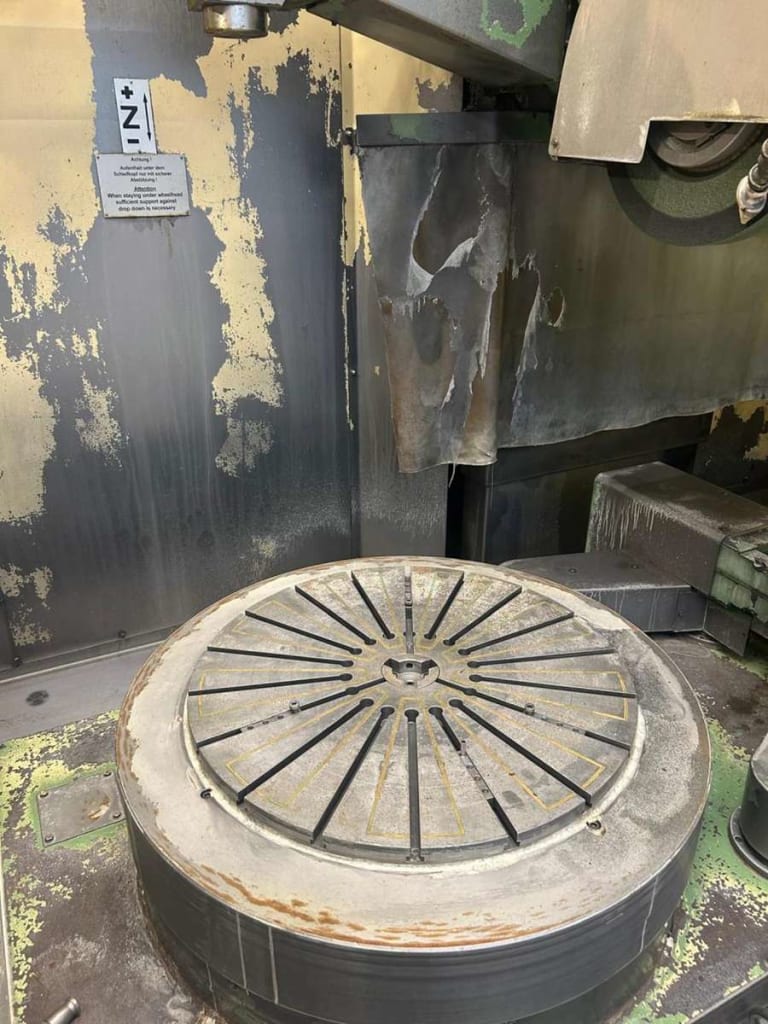

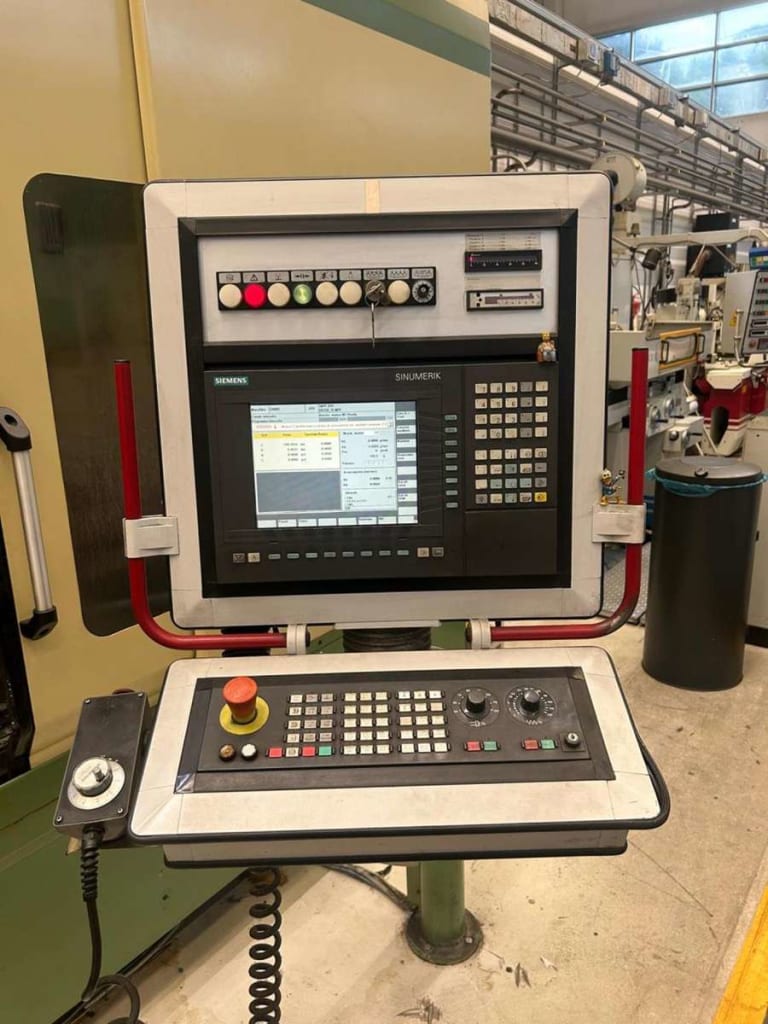

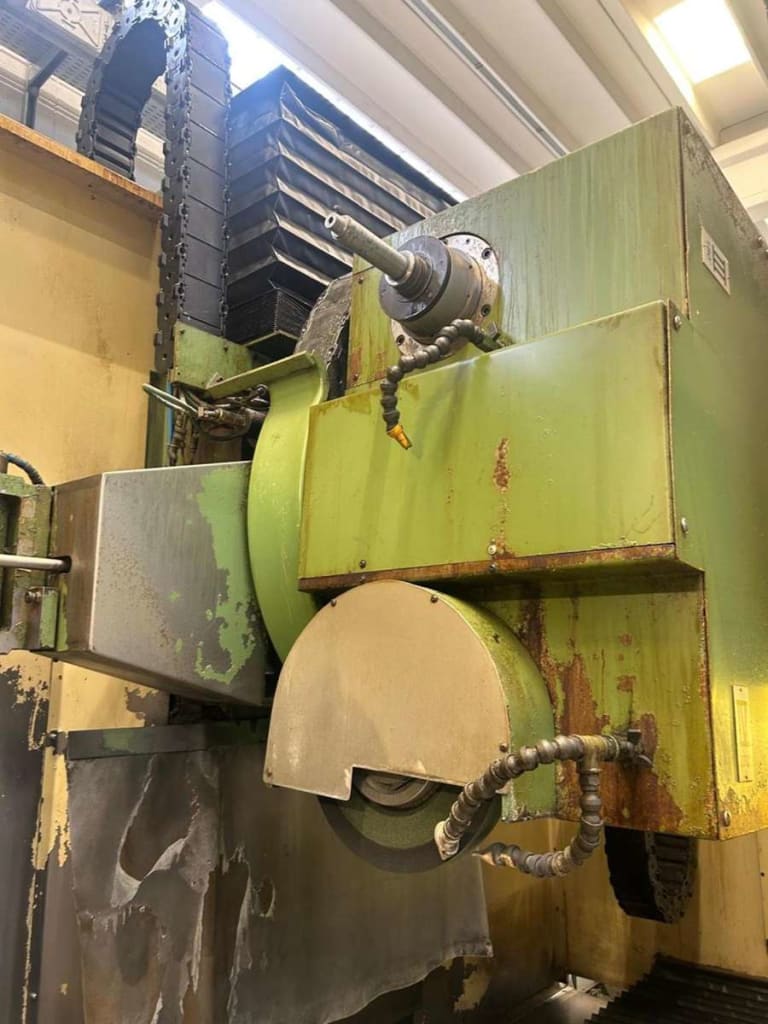

    LOT 5

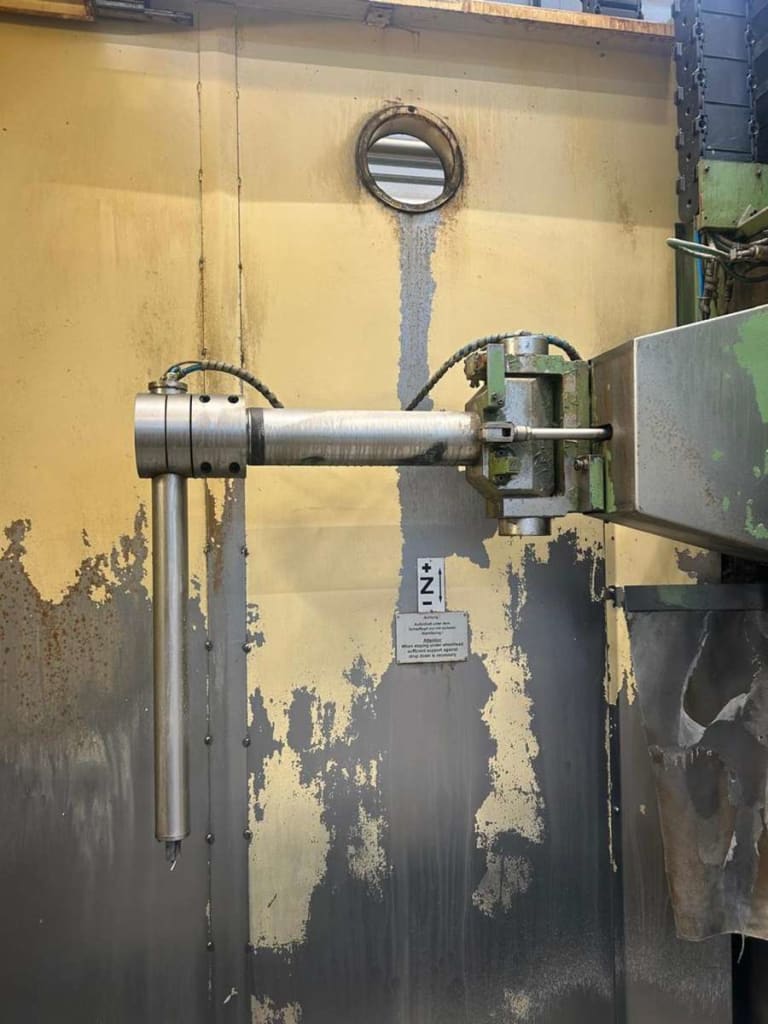

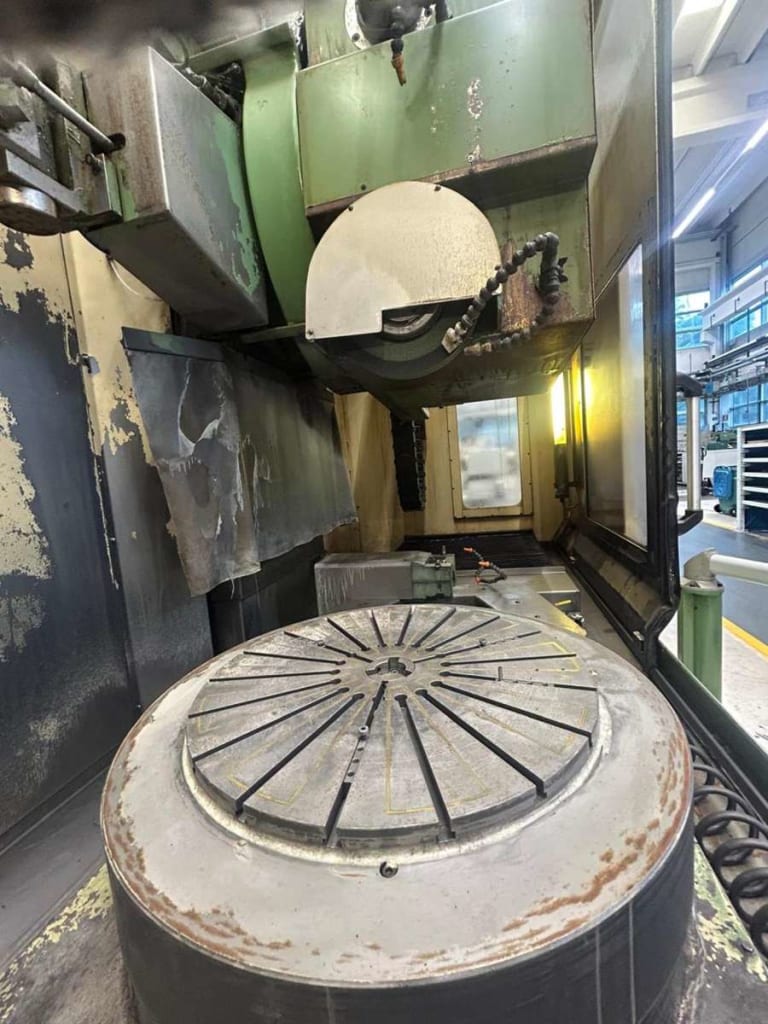

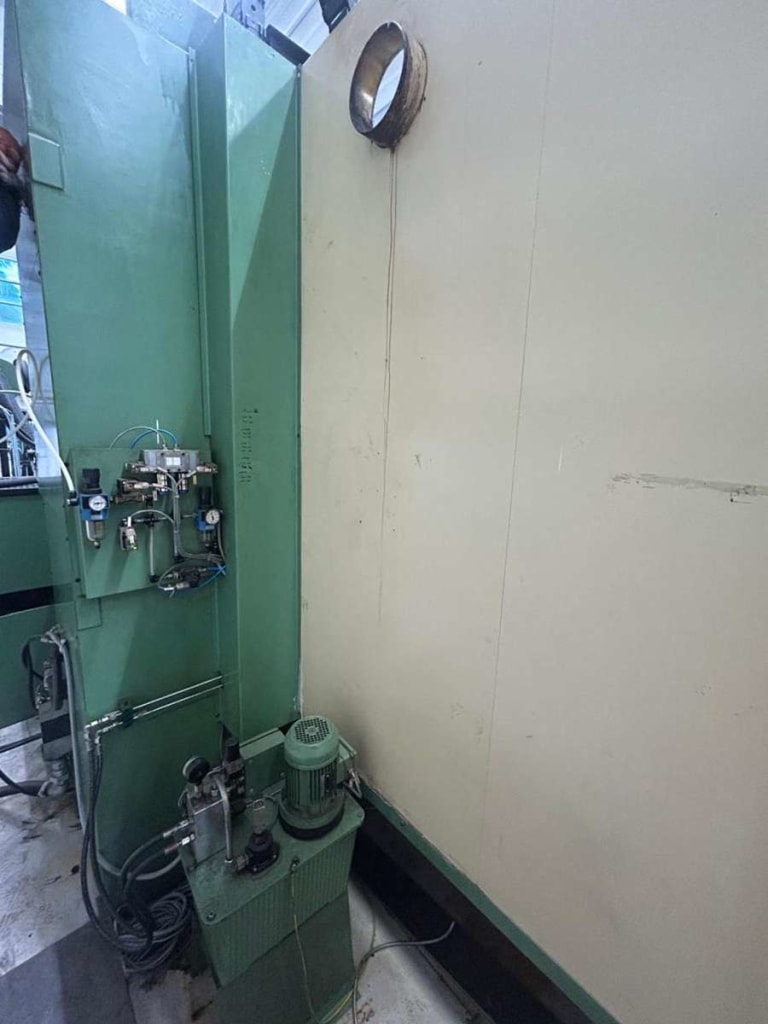

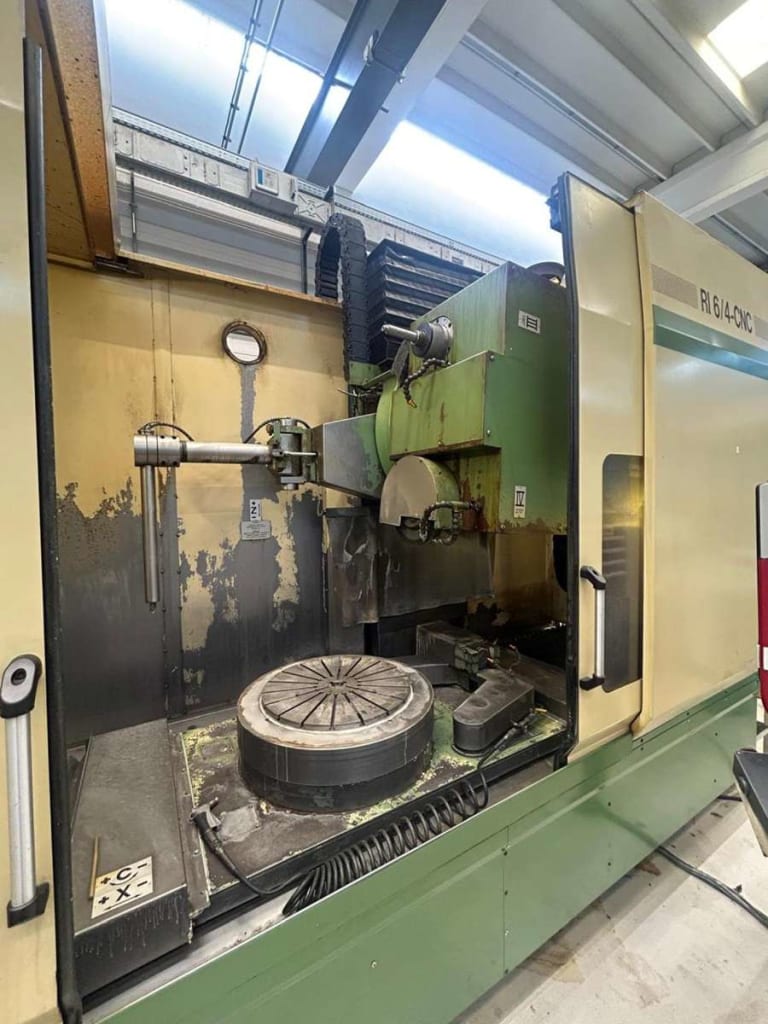

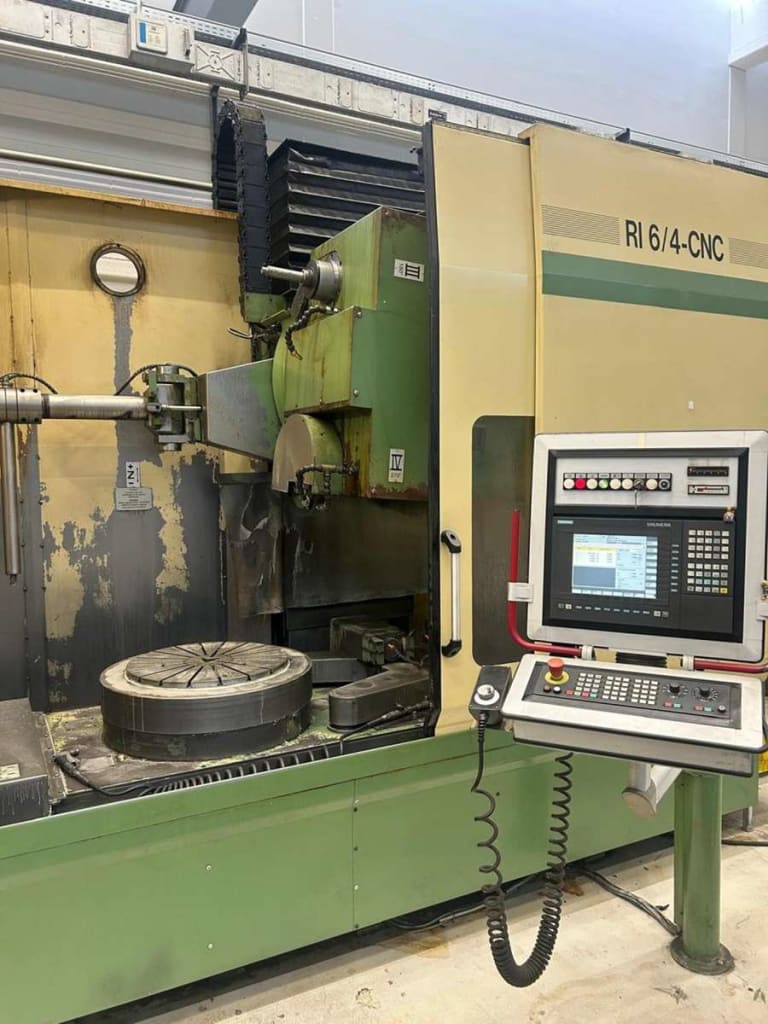

    KEHREN RI 6/4 CNC vertical grinding centre

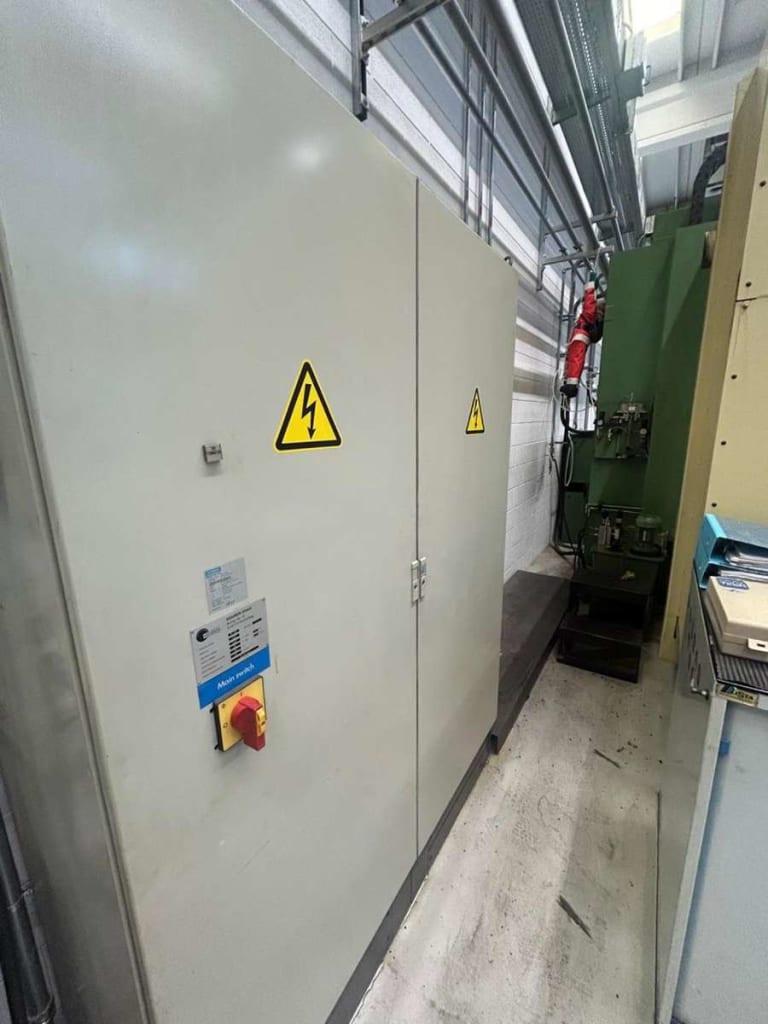

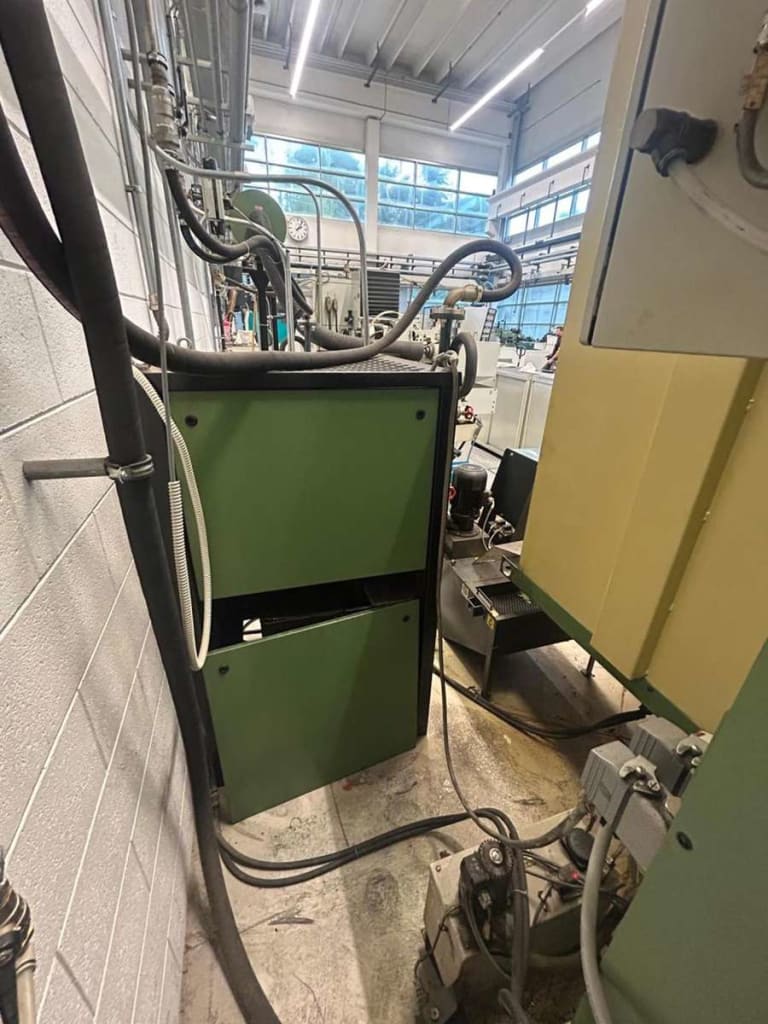

    Strokes: X-axis 1720mm / Y-axis 1100mm - Workpiece dimensions: Ø 1100mm - Height 600mm - Weight 1200Kg - B-axis max increments 360° - Grinding wheel speeds: Variator (infinitely variable) - Spindle 1: 170 - 24000RPM - Spindle 2: 1000 - 4500RPM - Spindle 3: 170 - 24000RPM - Spindle 4: 1200 - 4500RPM - Spindle taper: HSK C63 V52 - internal ref 23177 - Weight approx. 14000Kg - German origin. Serial 242-11, Year 1998. Site: 24030 Brembate di Sopra, Italy.

    View Item
  • 23178_1.jpg

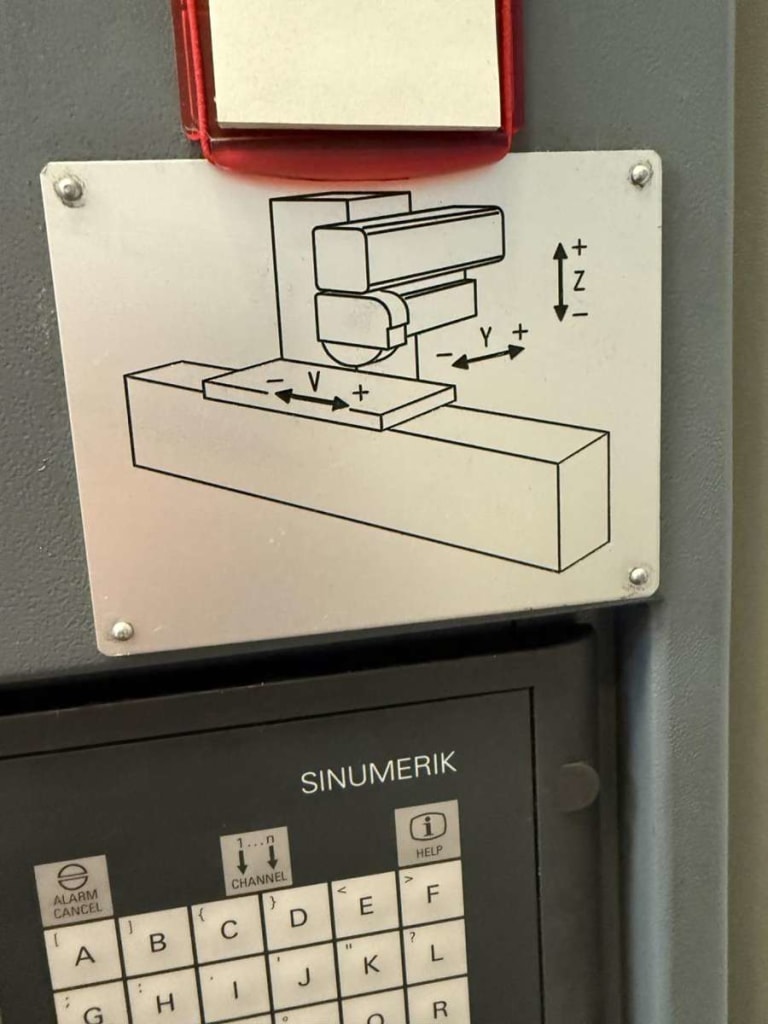

    LOT 6

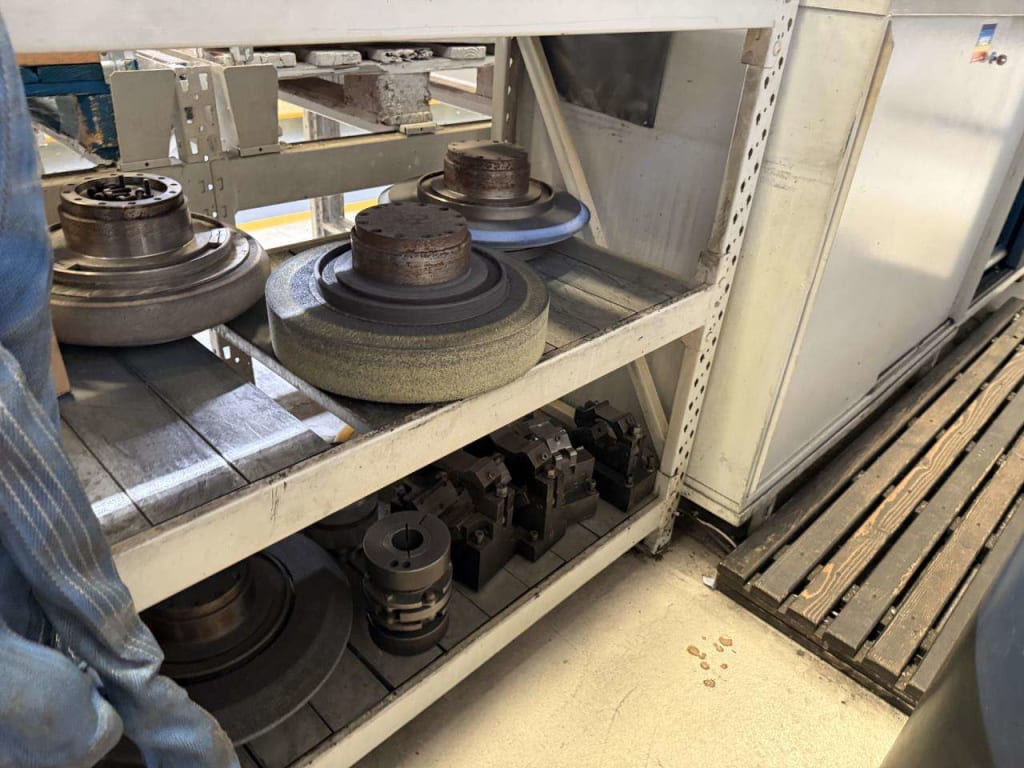

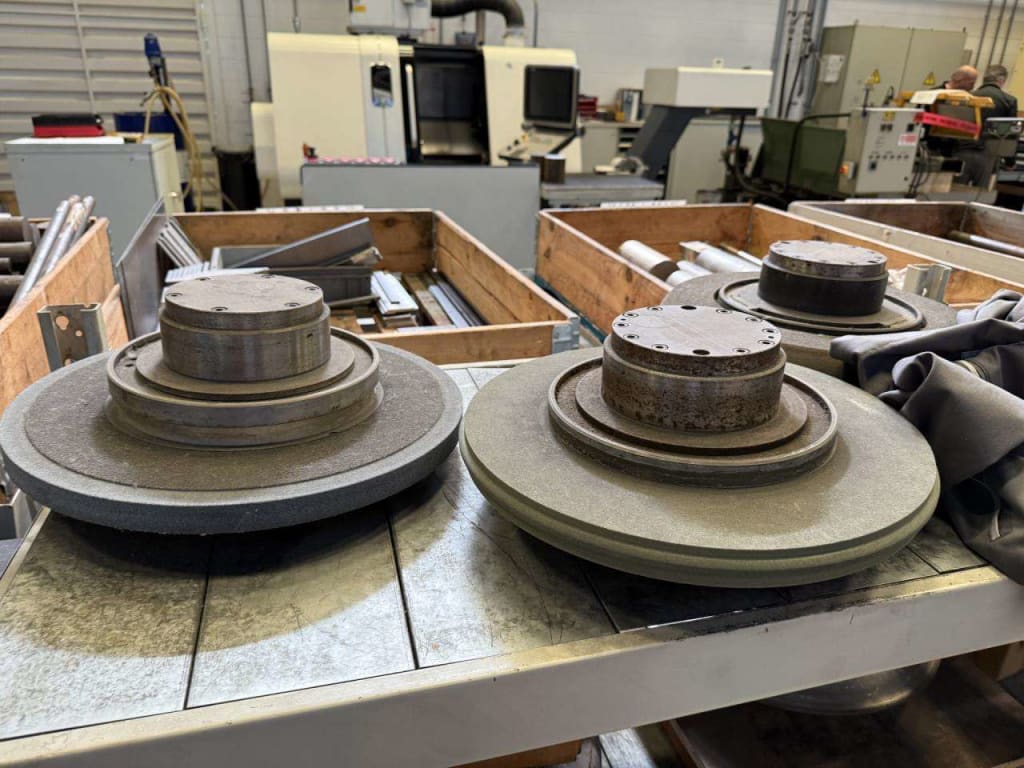

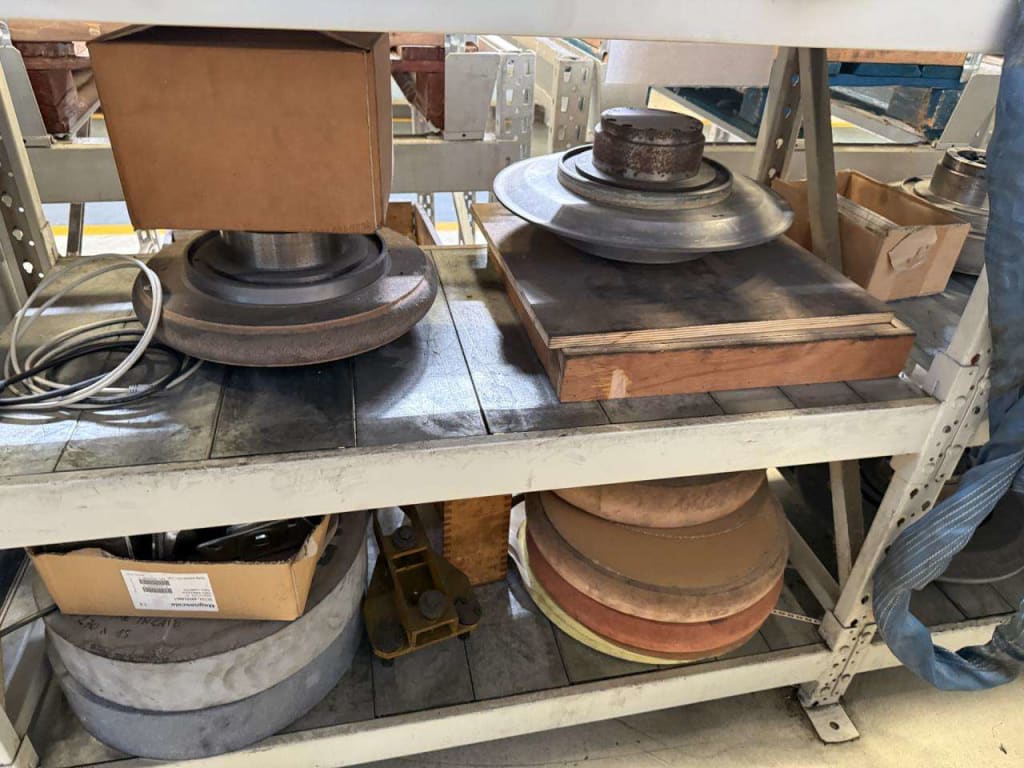

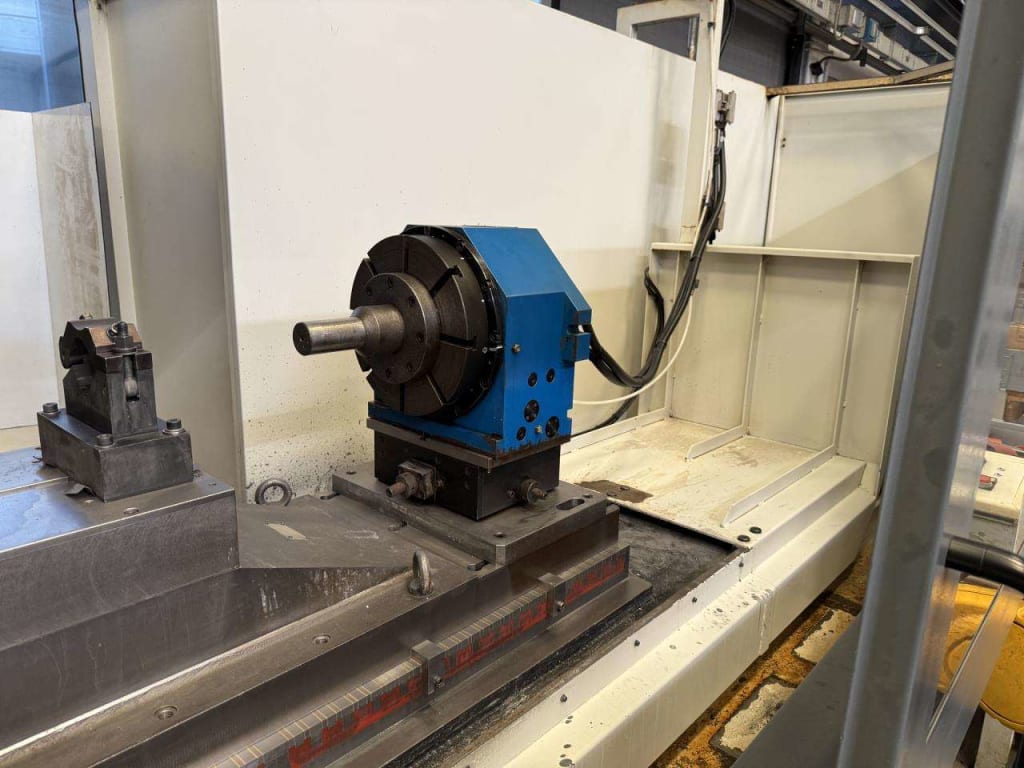

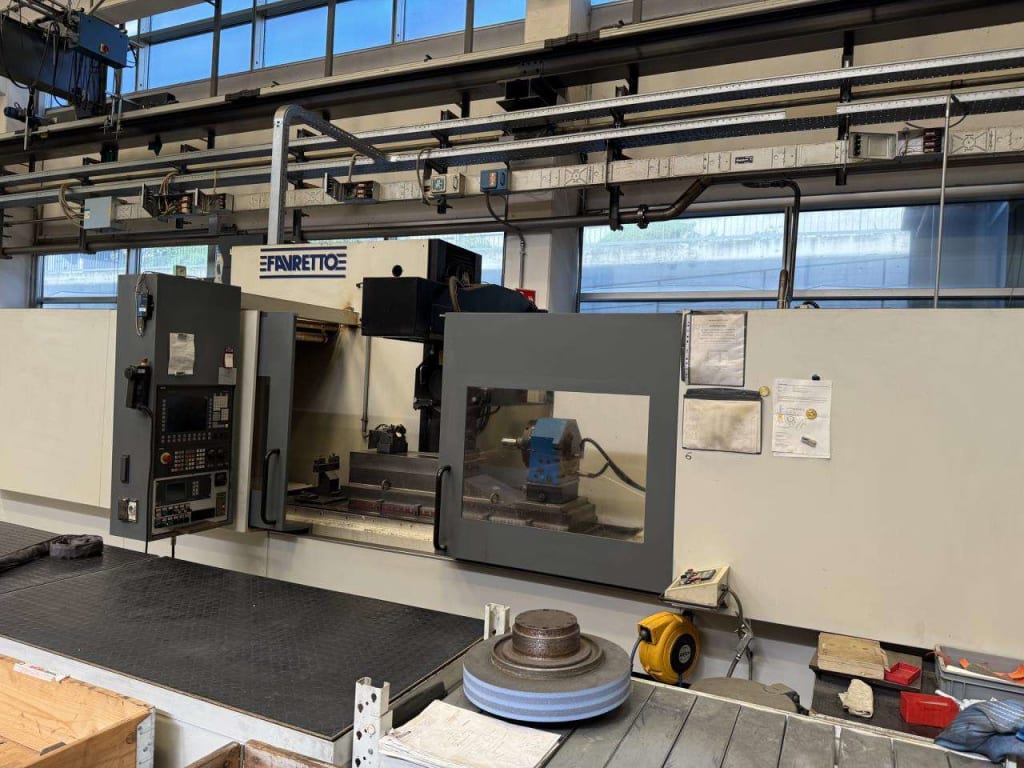

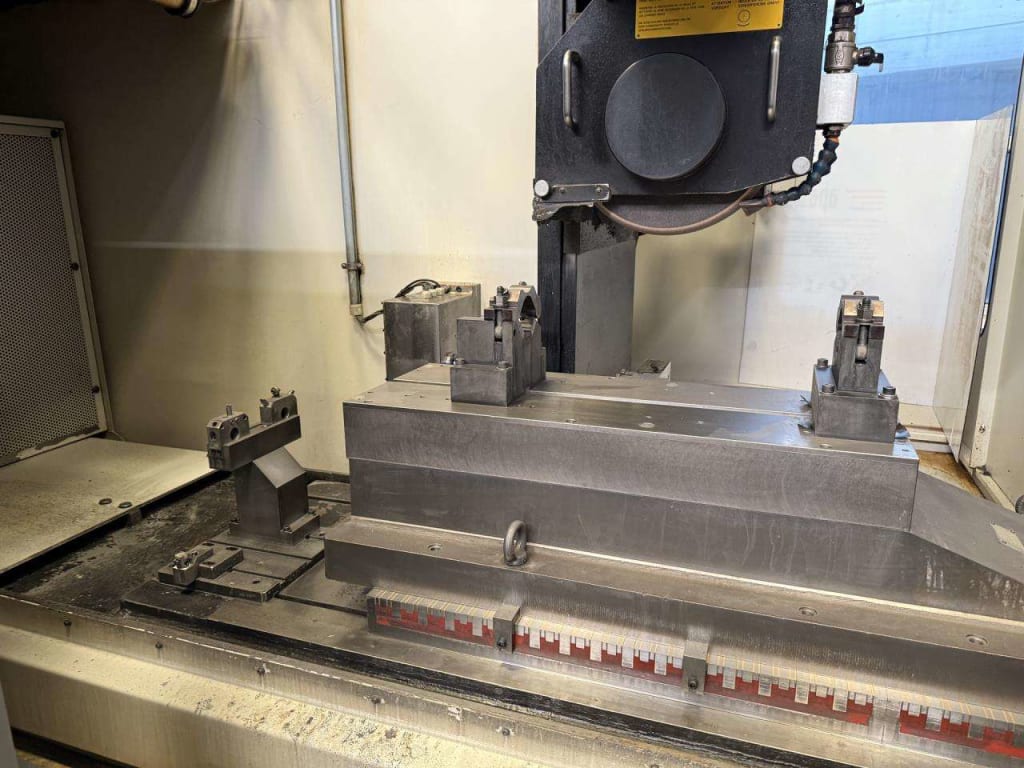

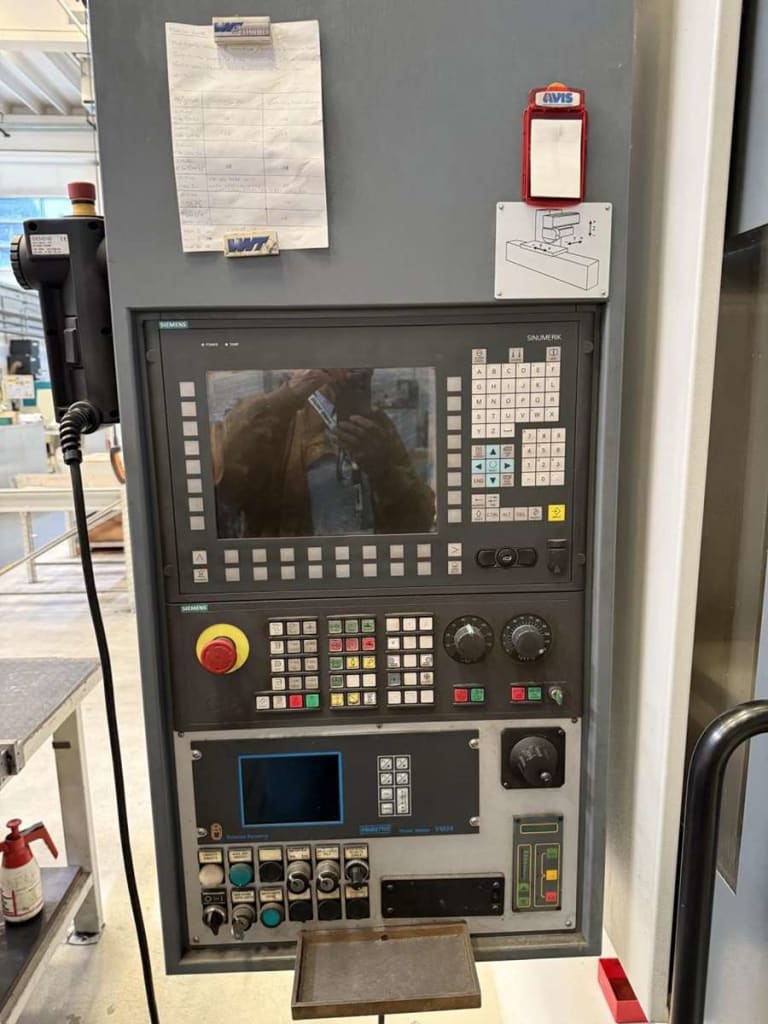

    FAVRETTO MD 160 CNC surface grinding machine

    Table length 1600mm - Table width 600mm - Longitudinal travel (X-axis) 1600mm - Transversal (Z-axis) 704mm - Vertical (Y-axis) 643mm - Internal ref. 23178 - Approx. weight 12000Kg - Italian origin. Site: 24030 Brembate di Sopra, Italy.
    View Item
  • 23180_1.jpg
    LOT 7

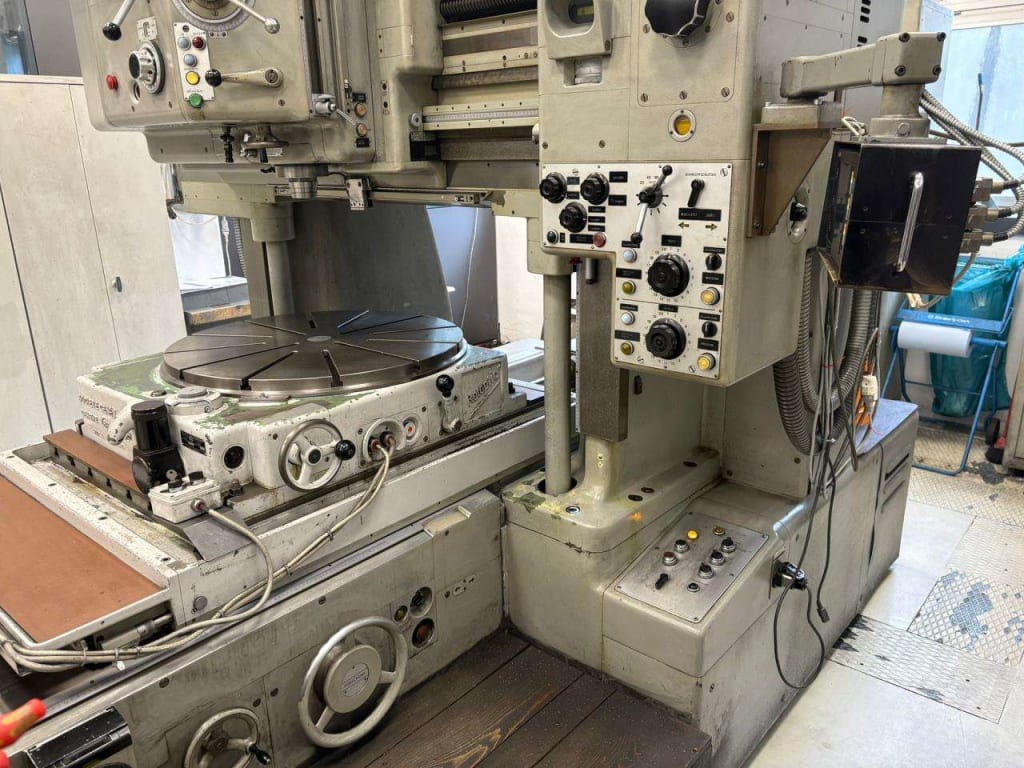

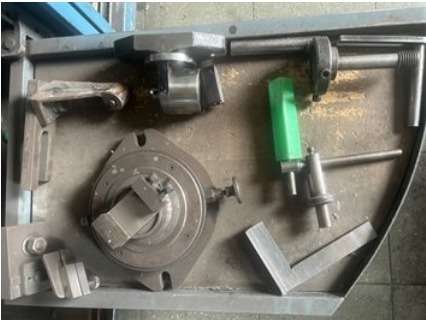

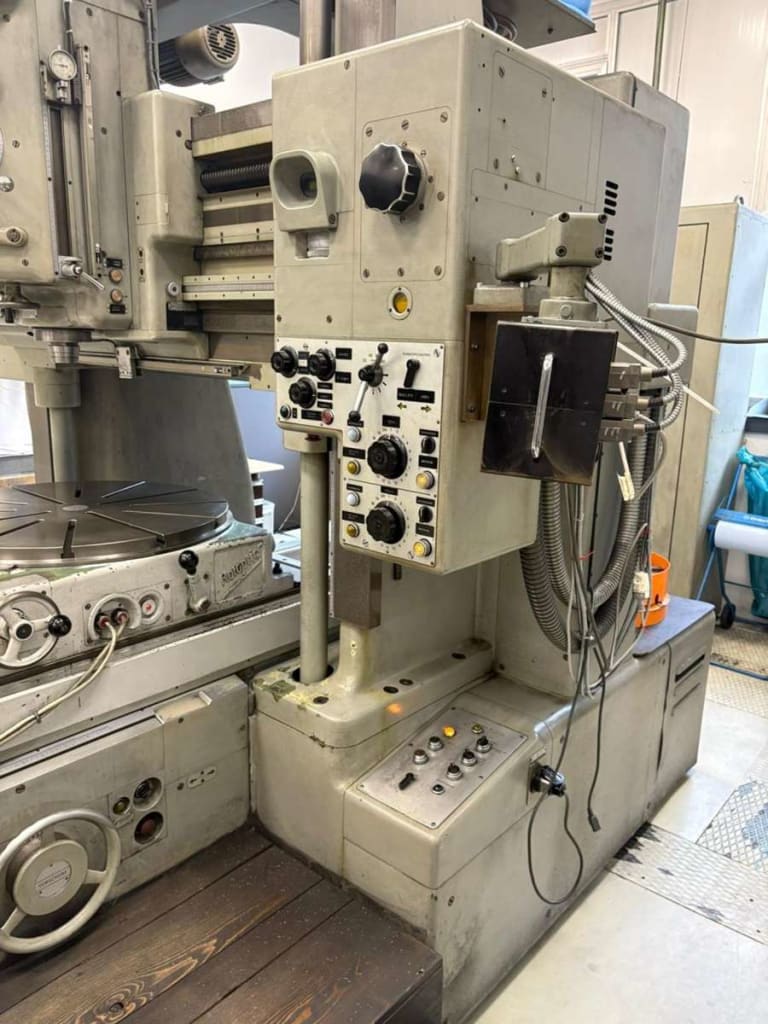

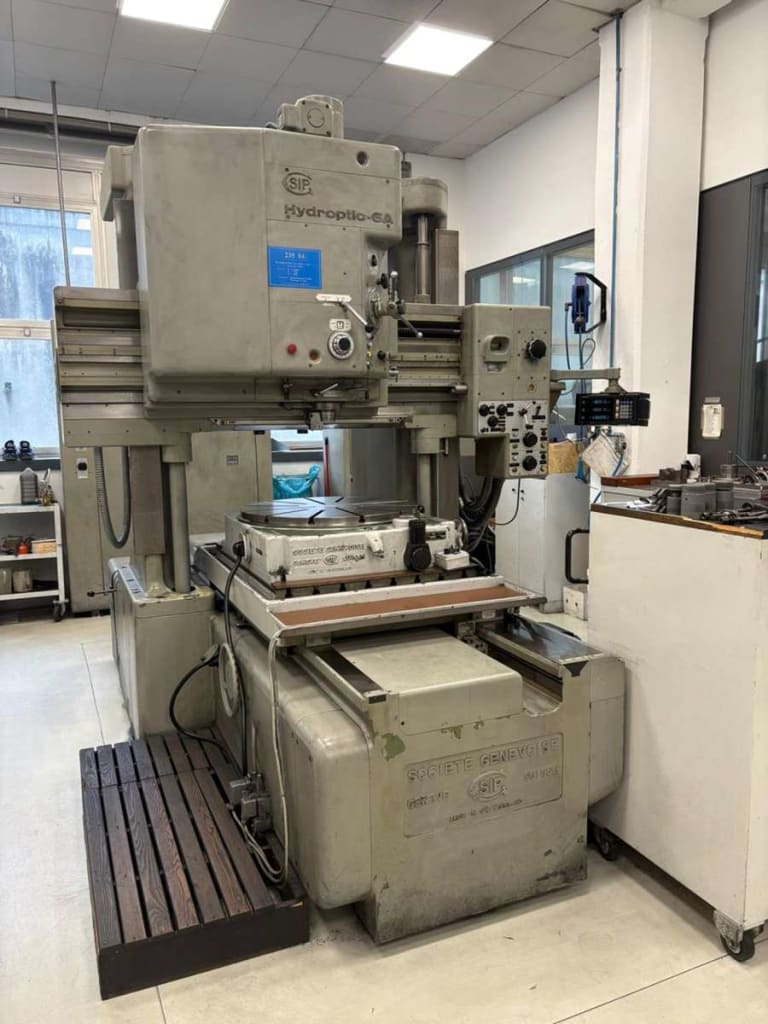

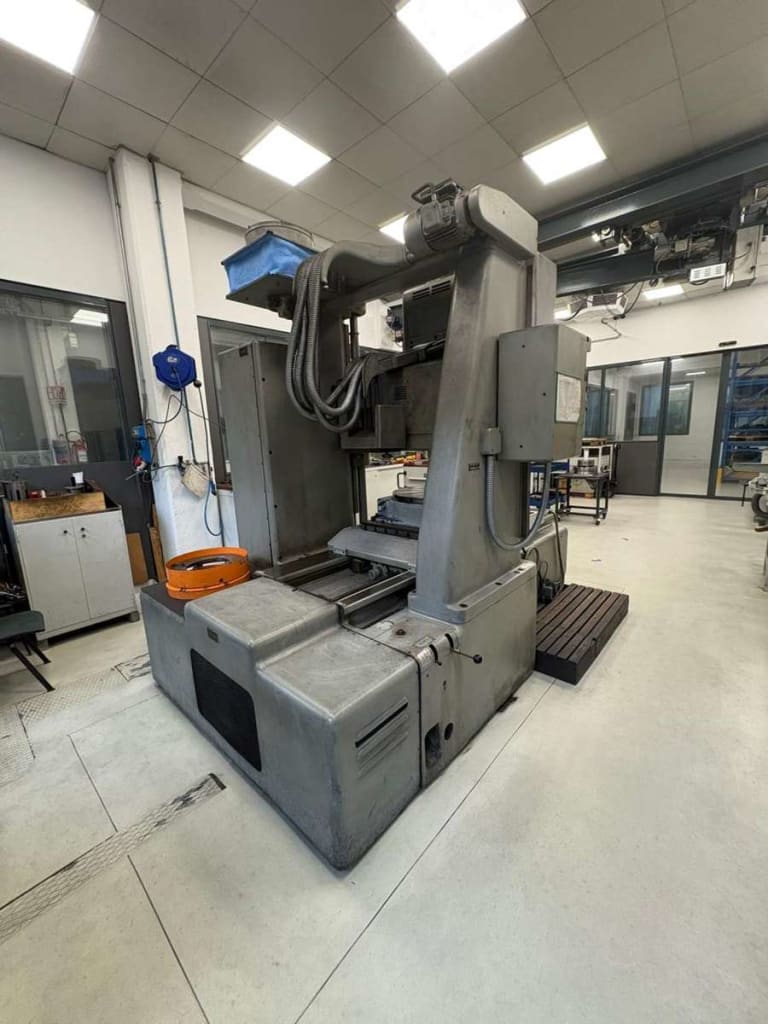

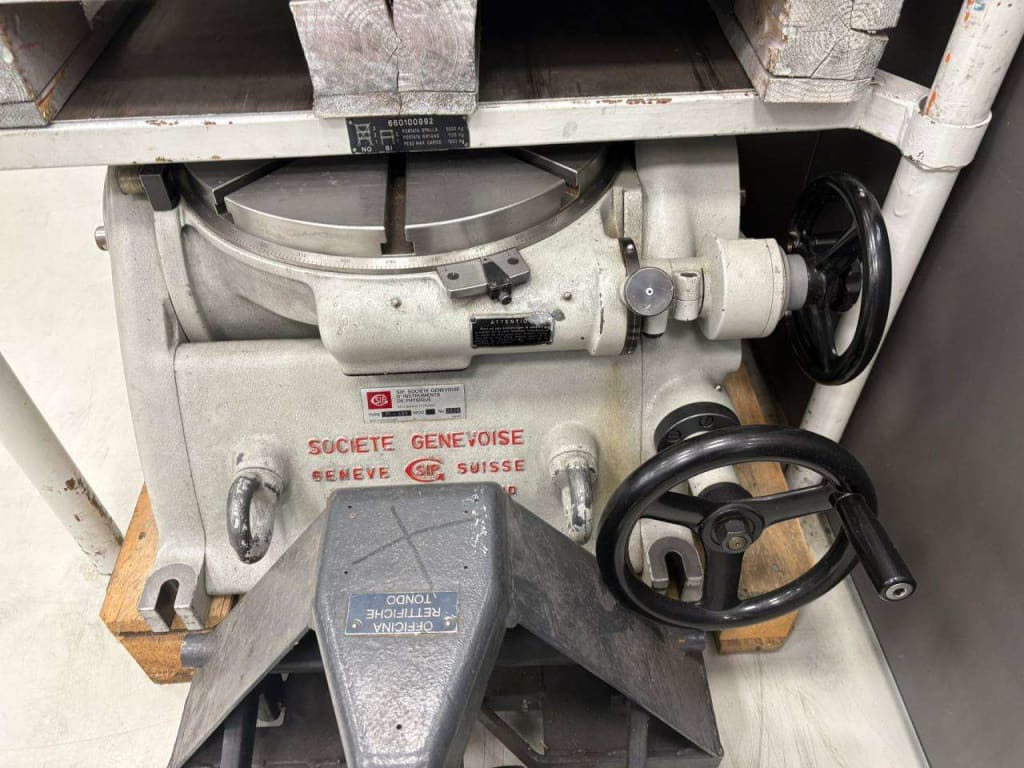

    SIP HYDROPTIC 6A pointing machine

    Table length 1100mm - Table width 842mm - Longitudinal travel (X-axis) 1000mm - Cross travel (Y) 795mm - Vertical travel (Z-axis) 800mm - Drilling capacity in steel 55mm - Spindle taper: CM 4 - Drilling spindle travel (Z-axis) 250mm - Bore Ø: max. 300mm - Spindle speeds: number (stages) 18 - from 40RPM to 2000RPM - Feeds:Table: Variator (infinitely variable) at 300mm/min - Drilling head: number (stages) 6 - from 0.04mm/t to 0.35mm/t - Rapid feeds: Table:long 2500mm/min - transverse 2500mm/min - Distance between uprights 1100mm - Distance between spindle and table 900mm - Power supply 50 Hz 3x 380 Volt - Spindle motor 4. 00 HP - Total installed power 8.0 HP - Internal ref. 23180 - Machine weight approx. 7500Kg - Swiss origin. Serial 7706, Year 1977. Site: 24030 Brembate di Sopra, Italy.

    View Item
