Nuovo Pignone S.r.l. - Collective lot Sale - 2 x SAW Welding Systems

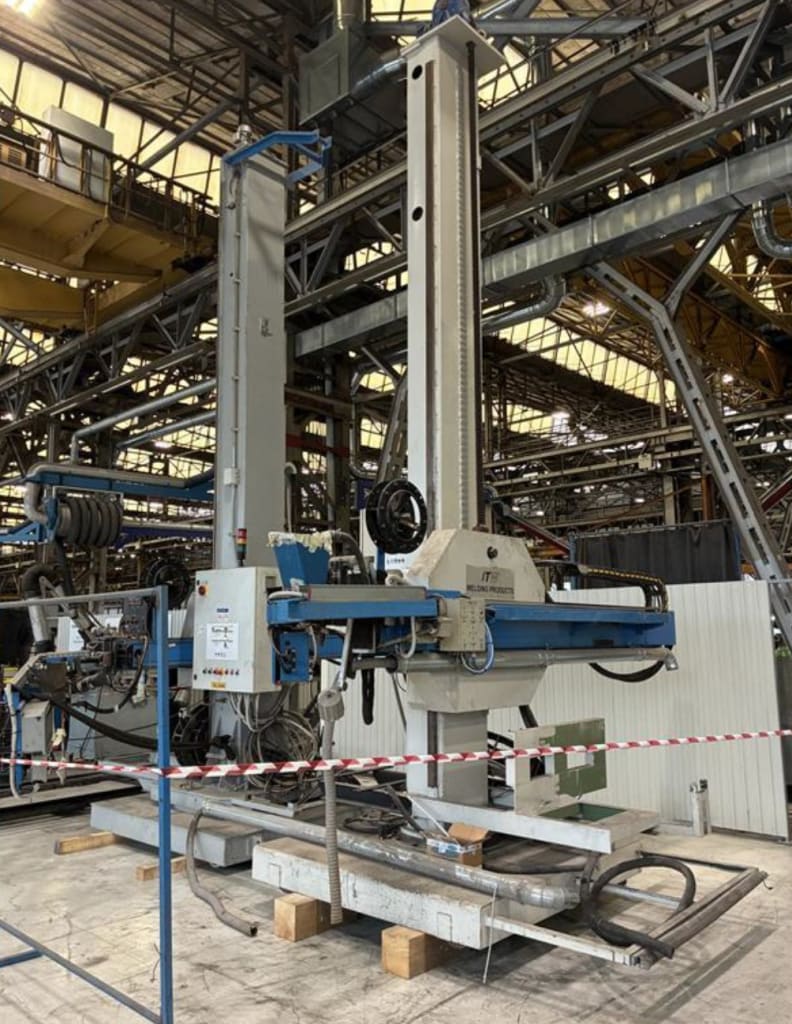

General Configuration The Two Saw Welding Machines Are Designed To Operate Both In Horizontal And Vertical Positions, Thanks To The Use Of A Magnetic Rail That Allows Controlled Movement Of The Torch Holder Trolley Along The Working Surface. The System Is Designed To Ensure High Stability, Precise Movement, And Repeatability Of The Submerged Arc Welding (Saw) Process. System Composition "OST" The OSTGroup Consists Of The Following Main Components: Mechanical And Structural Components Supporting Frame: A Rigid Structure That Houses The Various Subsystems And Ensures Stability During Welding. Pair Of Adjustment Slides: Allow Fine Adjustment Of The Torch And Accessories' Position. Cable Support: Cable Management System To Avoid Interference During Movement. Torch Support: An Adjustable Element For The Precise Positioning Of The Saw Torch. Functional Components: Control System: Control Panel For Managing Welding Parameters, Travel, And Oscillation. Oscillator: A Device That Enables Transverse Movement Of The Torch To Achieve Wider Beads Or Specific Welding Profiles. Handling Accessories 4,000mm Rail: Linear Guide On Which The Trolley Moves. 8 Magnets With Supports: Ensure Stable Fixation Of The Rail To The Support Surface, Even In A Vertical Position. Trolley Support Structure The Support Structure Is Designed To Support The Trolley And Allow Safe Adjustments And Movements. Main Features 2 Trapezoidal Screws: Allow The Adjustment Of The Trolley's Height, With A Useful Stroke That Allows Adaptation To Different Work Geometries. 4 Wheels: Facilitate Manual Movement Of The Structure Within The Operational Area. 4 Mechanical Brakes: Allow Stable Locking Of The Structure During The Welding Phase. Cable Carrier Chain: Installed Along The Rail For Orderly Management Of Gas Pipes And Electrical Cables. Handling System With Forklift And Overhead Crane: The Structure Is Equipped With Lifting Eyes For Safe Handling. Cutting Equipment Included In The System: Cutting Torch "Harris" Diameter: 32mm Length: 25cm Configuration: 3 Tubes Fittings: 9/16" Safety Valves: Harris Cvtl Ac/Gas Harris Cvtr Ac/Gas Oxy-Cutting Gas Pipe: Length: 10 Meters Gases Used: Oxygen And Methane Welding Generator Miller – Dimension 1,250 High-Power Arc Generator Suitable For High-Productivity Saw Processes. General Features: High Current Capacity Arc Stability Compatibility With Automatic Feeding Systems Flow Pusher Welding Technology – sfm 205k Unit Dedicated To The Controlled Feeding Of The Saw Flow: Constant Adjustment Of Filler Material Compatibility With Automatic Saw Torches Robust Structure For Continuous Industrial Use Dimensions And Structure Occupation Total Height: Approximately 3,000mm ±500mm, Adjustable Via Trapezoidal Screws. Main Beam Length: Approximately 4,200mm. Usable Rail Length: 4,000mm. S/No. AC854060 & S/No. LH013964C (2007).
